Model FB4A Tape Edge Machine

Model FB-4A is an upgraded products of Model FB-6, which is controled by PLC and driven by servo motor. and Man-machine control is more rationalization.

Quantity:
  • FB4A
  • square. sifang
  • 84522190

Model FB-4A tape edge machine


Main application and performance:

For Model FB-4A, the sewing head and carriage is drived separately by AC servomotors, controlled by a PLC. The machine provides manifold groups common combination of three sewing head rotary speeds and carriage speeds. Each group of combination provides one stitch. The sewing head lifting and carriage speed can be adjusted, turning speeds auto slowdown at corners. Man-machine control is more rationalization.


Technical Feature:


      1.With all the feature of Model FB6 tape edge machine.
      2.The sewing head and walking carriage is driven by servo motors and controlled by PLC.
      3.Wider range for height of mattress, it can sewing 50-700mm thick mattress.
      4.The machine can provide manifold groups common combination of three sewing head rotary speeds and carriage speeds.
      5.The adoption of servo can make the control more precisely.

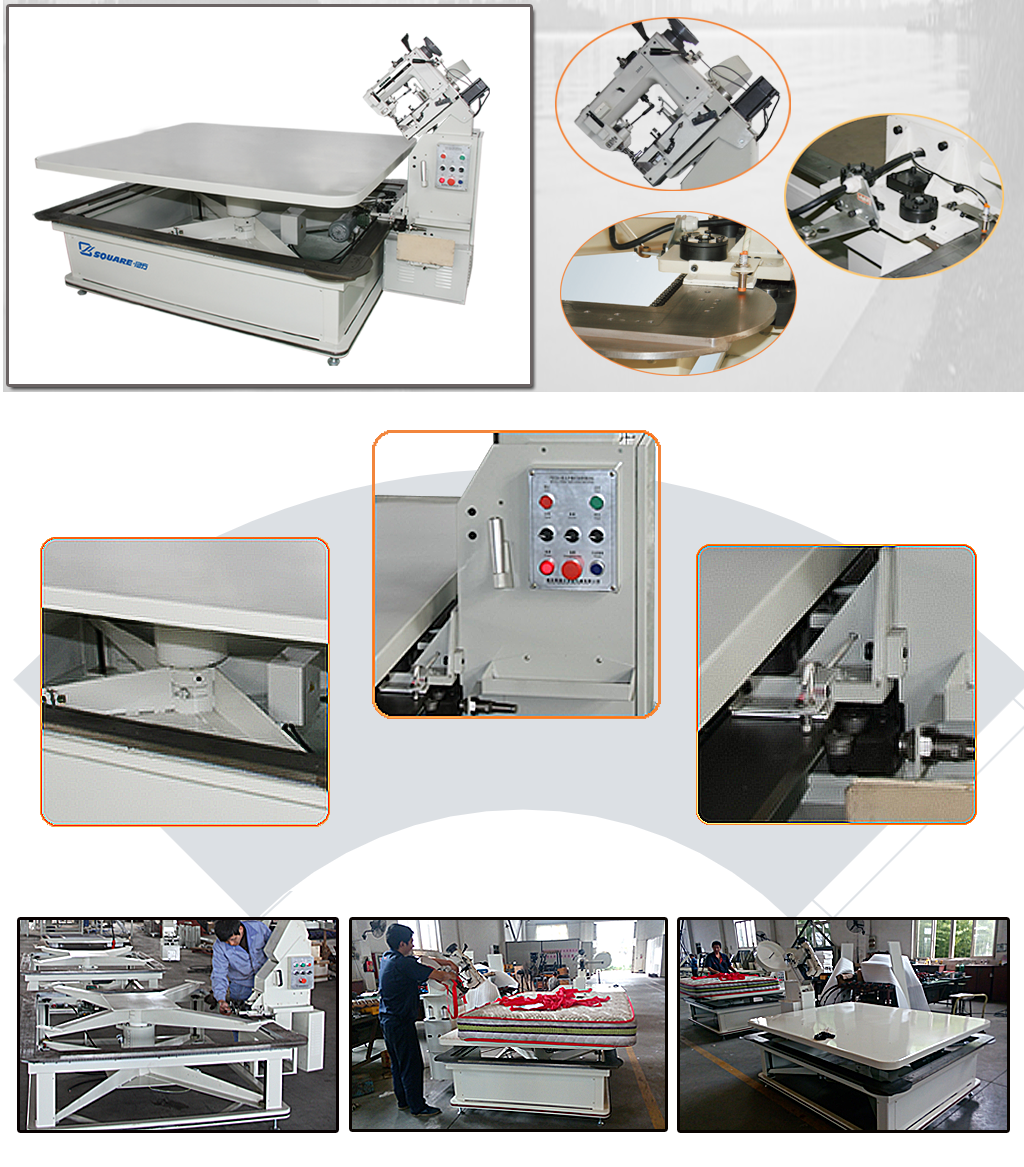

FB4A tape edge machine details

Product Specification:

Model FB4A
Sewing head typeChain stitch
Sewing head lifting range0-200mm
Mattress thickness50-700mm
Table Size1600x2000mm, 1800x200mm
Sewing head motor rotary speedMax. 1500-3000 r/min
(depending on the type of sewing head selected)
Carriage speed7-13.8m/min
Carriage clutching mode Electromagnet clutch
Productivity10-15 pcs/h
Motor power2 KW



Certificate:

FB4A tape edge machine certificate



CNC Machining Center:

FB4A tape edge machine cnc machining center

Conventional Machine Center:
FB4A tape edge machine conventional machine center



Shipping:

loading-and-packing

Exhibition:

mattress machine exhibition


Mattress Brand we served:

QQ图片20151201081856QQ图片20151201082047QQ图片20151201081748QQ图片20151201081908QQ图片20151201081956QQ图片20151201081928QQ图片20151201081640
QQ图片20151201081811QQ图片20151201081542QQ图片20151201081800QQ图片20151201081724QQ图片20151201082009QQ图片20151201081841QQ图片20151201081657
QQ图片20151201081710QQ图片20151201081825QQ图片20151201082021QQ图片20151201082505QQ图片20151201082322QQ图片20151201082515QQ图片20151201082538
QQ图片20151201082310QQ图片20151201082432QQ图片20151201082644QQ图片20151201082110QQ图片20151201082421QQ图片20151201082137QQ图片20151201082344
QQ图片20151201082137QQ图片20151201082744QQ图片20151201082443QQ图片20151201082632QQ图片20151201082558QQ图片20151201082213QQ图片20151201082813

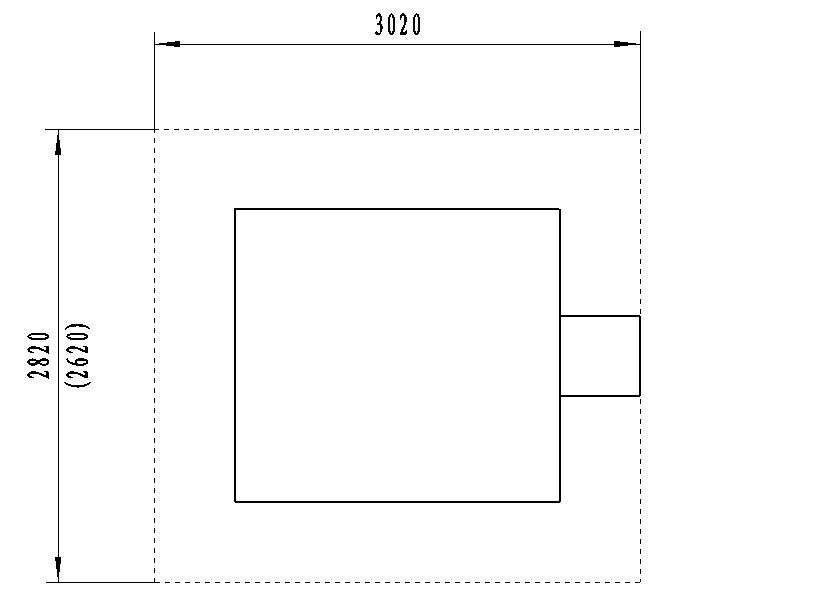

Machine Layout :

FB4A tape edge machine layout size


The machine will be packed in two plywood wooden cases.

Package 1: 2225x2050x950 mm
Package 2: 1050x700x900 mm

Total G.W.: 980 kgs
