CLD3 Mattress Handle Sewing/Cutting Machine

This machine is mainly used for making mattress handle automatically.

Quantity:
  • square. sifang

Model CLB1/CLB2 Mattress Handle Sewing Machine


Main application and performance:

Model CLB1/CLB2 mattress handle sewing machine is a specialized equipment for mattress handle product. It is characterized with multi-needles chain stitch, retral pull roller, material feeder, finished winder, synchronous action and convenient operation. It is one of the mattress handle sewing equipments.



Technical Feature:

1. Auto sewing and rewinding system;

2. Heavy-duty multi-needle sewing head with puller;

3. Self-contained pressure oiling system;

4. Electronic thread stops;

5. Auto stops when raw material depleted;

6. 1-6 needles available(customer specificed)

7. Handle width, length, type filler by customer specifications;

8. Messures, cuts counts& tacks mattress handles(optional)

9. Programmable cutter for precise handle lengths straight cut/miter cut;

10. Preset piece counter cut, fold, tuck& track.

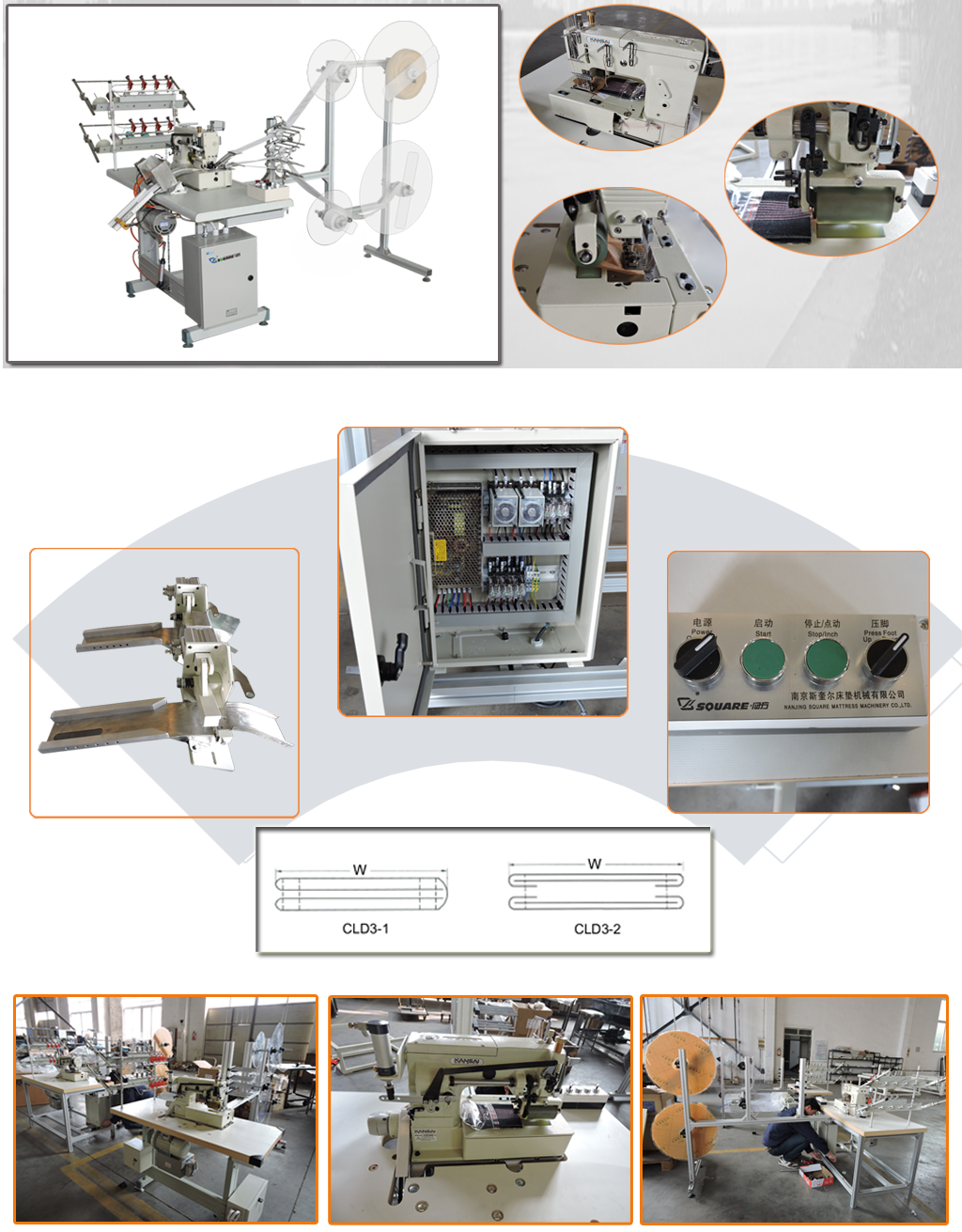

CLD3 mattress handle sewing/cutting machine details

Product Specification:



Sewing head Multi-needles chain stitch
Space of the threads 6.35 multiple
Working table 1200 x 600 mm
Handle strap width 50-55 mm
Rotary speed Max. 3800 rpm
Sewing thickness  less than 6 mm
Sewing speed 7-10 m/min
Total power 430 w
Equipped with special fabric guide


Certificate:

mattress handle sewing/cutting machine certificate



CNC Machining Center:

mattress handle sewing/cutting machine cnc machining center

Conventional Machine Center:
mattress handle sewing/cuting machine conventional machine center



 Parts Warehouse:

mattress handle sewing/cuting machine parts-warehouse



Shipping
:


loading-and-packing

Exhibition:

mattress machine exhibition


Mattress Brand we served:

QQ图片20151201081856 QQ图片20151201082047 QQ图片20151201081748 QQ图片20151201081908 QQ图片20151201081956 QQ图片20151201081928 QQ图片20151201081640
QQ图片20151201081811 QQ图片20151201081542 QQ图片20151201081800 QQ图片20151201081724 QQ图片20151201082009 QQ图片20151201081841 QQ图片20151201081657
QQ图片20151201081710 QQ图片20151201081825 QQ图片20151201082021 QQ图片20151201082505 QQ图片20151201082322 QQ图片20151201082515 QQ图片20151201082538
QQ图片20151201082310 QQ图片20151201082432 QQ图片20151201082644 QQ图片20151201082110 QQ图片20151201082421 QQ图片20151201082137 QQ图片20151201082344
QQ图片20151201082137 QQ图片20151201082744 QQ图片20151201082443 QQ图片20151201082632 QQ图片20151201082558 QQ图片20151201082213 QQ图片20151201082813



Machine Layout :

CLD3 automatic handle sewing/cutting machine layout size


The machine will be packed in two plywood wooden cases.

Package 1: 1350x750x1350 mm
Package 2: 1600x750x1550 mm

Total G.W.: 200 kgs
