QH2 Automatic S-Shape Spring Forming Machine

This machine is mainly used for producing S shape spring for sofa and vehicle chair.

Quantity:
  • square. sifang
QH2 Automatic S-Shape Spring Forming Machine


Main application and performance:

The machine is mainly used for producing S-shape spring. It is an ideal equipment for making cushion spring used in sofa and automobile.

with this kind machine, pitch and height of the s-shape zigzag spring is adjustable in certain range. with convenient operation, it is an ideal equipment for making cushion spring used in sofa and automobile.
it is optional to equip this machine with auto cutting mechanism,as well as finished spring winding mechanism.

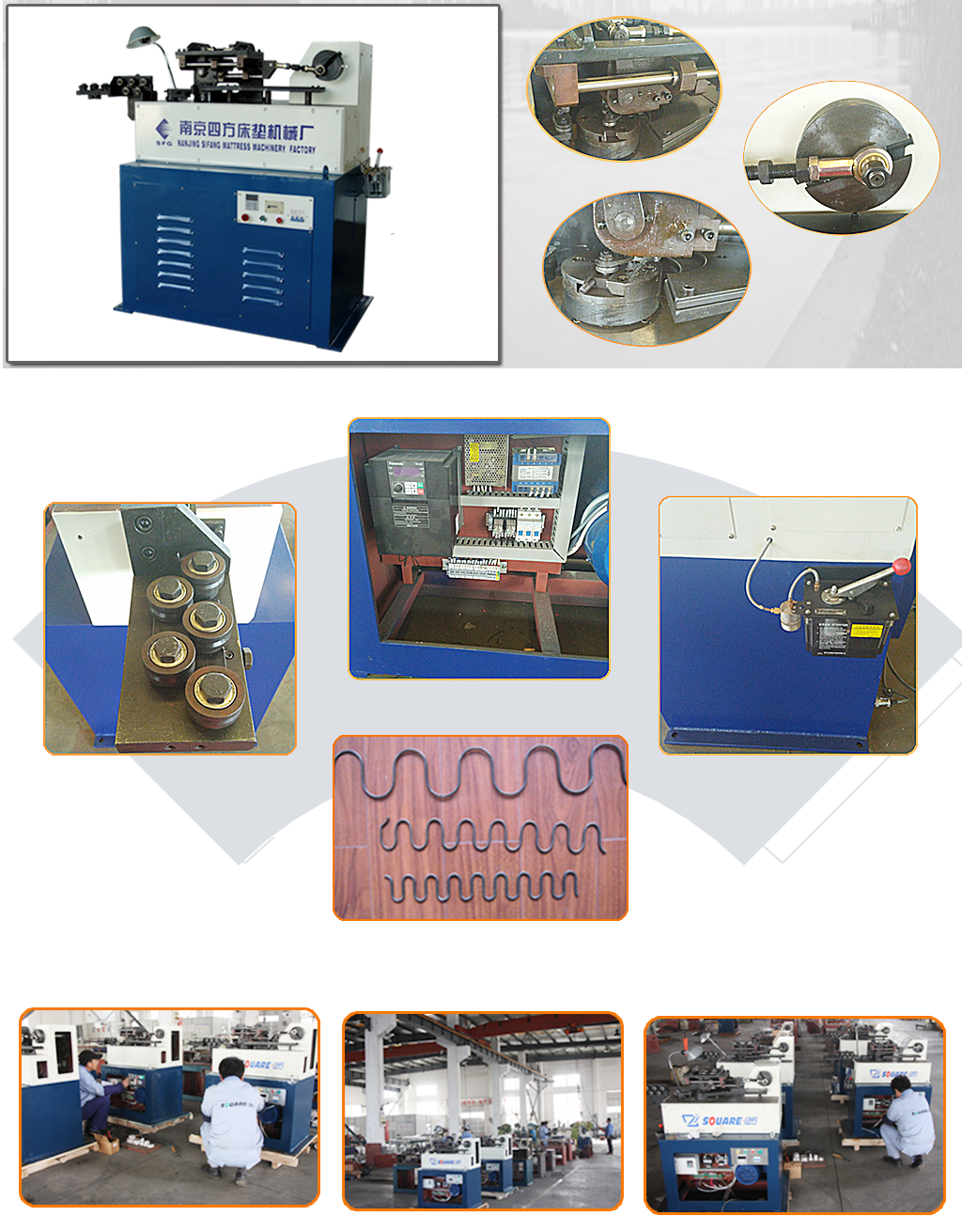

QH2 automatic s-shape spring forming machine details
Product Specification:

Available wire diameter 2.5-4.2 mm
Spring pitch 20-50 mm
Available spring height 40-70 mm
Max. productivity 240 peaks/min
Motor power 4 kw


Certificate:

automatic s-shape spring forming machine certificate

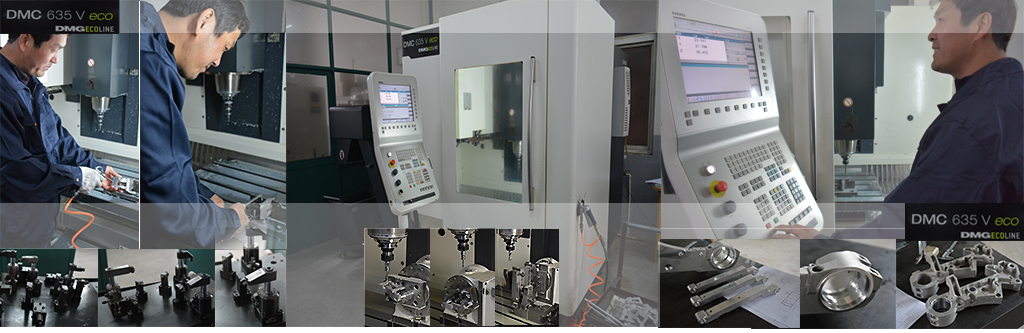

CNC Machining Center:

automatic s-shape spring forming machine cnc machining center

Conventional Machine Center:
automatic s-shape spring forming machine conventional machine center

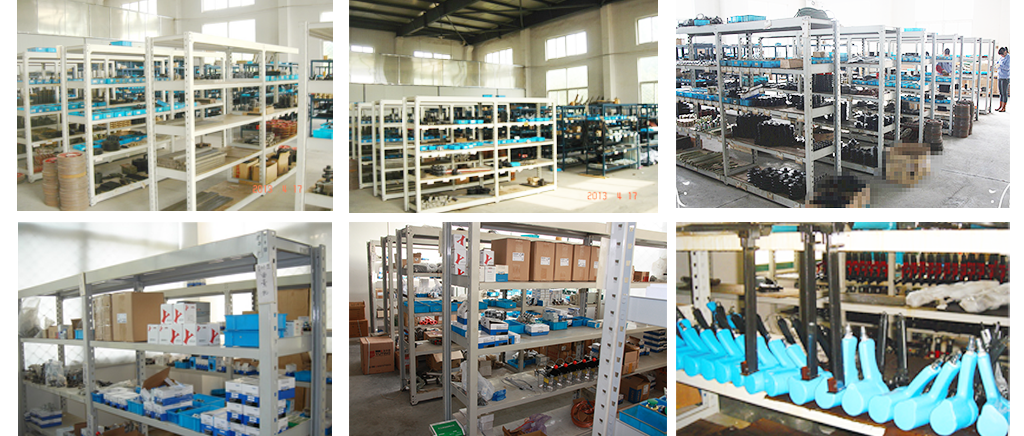

 Parts Warehouse:

automatic s-shape spring forming machine parts-warehouse




Shipping
:


loading-and-packing

Exhibition:

mattress machine exhibition


Mattress Brand we served:
QQ图片20151201081856 QQ图片20151201082047 QQ图片20151201081748 QQ图片20151201081908 QQ图片20151201081956 QQ图片20151201081928 QQ图片20151201081640
QQ图片20151201081811 QQ图片20151201081542 QQ图片20151201081800 QQ图片20151201081724 QQ图片20151201082009 QQ图片20151201081841 QQ图片20151201081657
QQ图片20151201081710 QQ图片20151201081825 QQ图片20151201082021 QQ图片20151201082505 QQ图片20151201082322 QQ图片20151201082515 QQ图片20151201082538
QQ图片20151201082310 QQ图片20151201082432 QQ图片20151201082644 QQ图片20151201082110 QQ图片20151201082421 QQ图片20151201082137 QQ图片20151201082344
QQ图片20151201082137 QQ图片20151201082744 QQ图片20151201082443 QQ图片20151201082632 QQ图片20151201082558 QQ图片20151201082213 QQ图片20151201082813

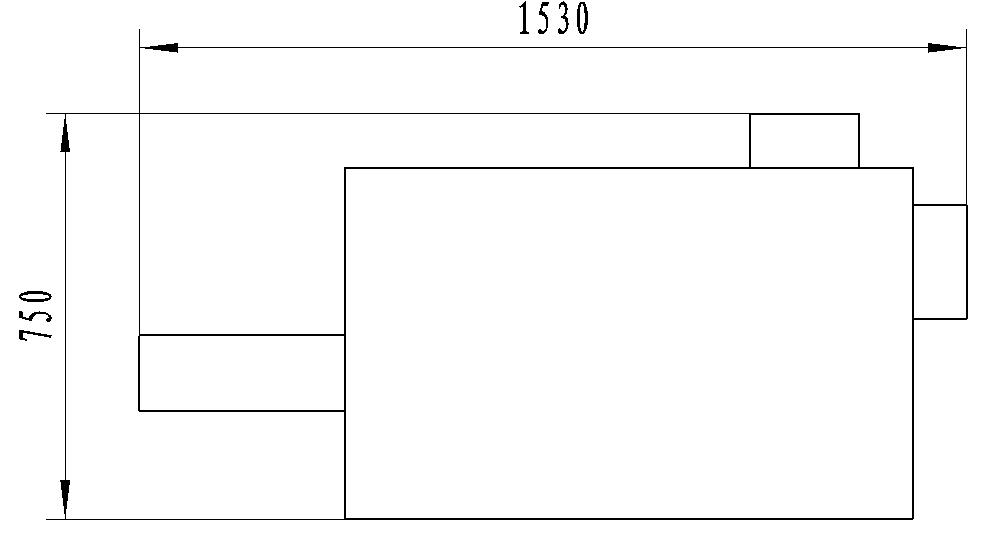

Machine Layout :

QH2 automatic S-Shape Spring forming machine layout size


The machine will be packed in two plywood wooden cases.

Package 1: 1240x950x1420 mm
Package 2: 1200x1200x1030 mm

Total G.W.: 940 kgs
