ZJQ Automatic Zigzag Mattress Label Machine

This machine is mainly used for sewing label of mattress automatically.

Quantity:
  • square. sifang

ZJQ Automatic Zigzag Mattress Label Machine


Main application and performance:

Model ZJQ automaitc zigzag label machine is mainly used for  sewing label of mattresses. It is driving by inverter and stepper motor, controlled by PLC, pressing and clamped by air pressure. It sews the prepared label on the mattress automatically. The machine has the following characteristics: positioning accuracy, perfectly stitch, simple operation, high speed sewing etc. It is a perfect equipment for high-class mattress.



Technical Feature:

  1. Japanese sewing head, and imported servo motors for controlling ensuring more precision and stability;

  2. High-stroke to automatically lift the pressure foot, which makes the cloth discharge convenient and fast, and the thread auto-cutting system and auto-oiling system.

  3. Precise and reliable positioning and perfect and consistent stitches, which makes it easier to operate.

  4. Able to make labels of various sizes and has the pre-store programs.

  5. Label sizes of various frames can be programmed as per customer's request.


ZJQ automatic zigzag label machine details


Product Specification:

Model ZJQ
Max sewing speed 1000 r/min
Proper sewing speed 600 r/min
Max sewing range 275 x 175 (Depending on your label size)
Max sewing thickness 50mm
Presserfoot lift 35mm
Motor power 1500W
Operating air pressure 0.6-0.8Mpa



Certificate:

ZJQ automatic zigzag label machine certificate



CNC Machining Center:

ZJQ automatic zigzag label machine cnc machining center

Conventional Machine Center:
ZJQ automatic zigzag label machine conventional machine center



 Parts Warehouse:

ZJQ automatic zigzag label machine parts-warehouse




Shipping
:


loading-and-packing

Exhibition:

mattress machine exhibition


Mattress Brand we served:

QQ图片20151201081856 QQ图片20151201082047 QQ图片20151201081748 QQ图片20151201081908 QQ图片20151201081956 QQ图片20151201081928 QQ图片20151201081640
QQ图片20151201081811 QQ图片20151201081542 QQ图片20151201081800 QQ图片20151201081724 QQ图片20151201082009 QQ图片20151201081841 QQ图片20151201081657
QQ图片20151201081710 QQ图片20151201081825 QQ图片20151201082021 QQ图片20151201082505 QQ图片20151201082322 QQ图片20151201082515 QQ图片20151201082538
QQ图片20151201082310 QQ图片20151201082432 QQ图片20151201082644 QQ图片20151201082110 QQ图片20151201082421 QQ图片20151201082137 QQ图片20151201082344
QQ图片20151201082137 QQ图片20151201082744 QQ图片20151201082443 QQ图片20151201082632 QQ图片20151201082558 QQ图片20151201082213 QQ图片20151201082813

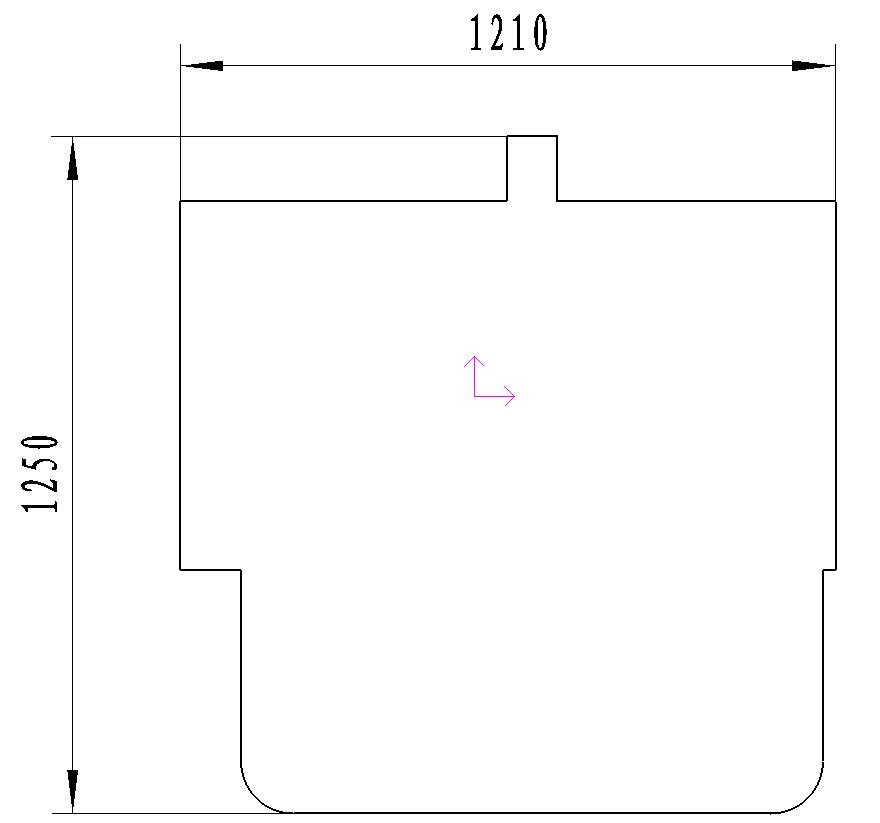

Machine Layout :

ZJQ automatic zigzag label machine layout size


The machine will be packed in one plywood wooden cases.

Package 1: 1350x1250x1550 mm

Total G.W.: 580 kgs
