DBJ2 Mattress Repack Machine

This machine repack vacuum-compressed mattresses by hydraulic pressure device, making the mattresses easy to transportation and storage.

Quantity:
  • square. sifang
DBJ2  Mattress Repack Machine


Main application and performance:

This machine repack vacuum-compressed mattresses by hydraulic pressure device, making the mattresses easy to transportation and storage. The upper and lower frame make your products easy to loading even if its compressing bag was broken. It is perfect equipment for vacuum-compressed mattresses.


Product Specification:

Max mattress size 2100 x 2050 mm
Max width of frame and working table 1880 mm
Min width of frame and working table 990 mm
Available mattress quantity 50 pcs
Power 5.5 kw
Air pressure 8 Mpa
Overall dimension 2820 x 2100 x 3500 mm


Certificate:

mattress machine certificate



CNC Machining Center:

mattress machine cnc machining center

Conventional Machine Center:
mattress machine conventional machine center



Shipping:

loading-and-packing

Exhibition:

mattress machine exhibition


Mattress Brand we served:
QQ图片20151201081856 QQ图片20151201082047 QQ图片20151201081748 QQ图片20151201081908 QQ图片20151201081956 QQ图片20151201081928 QQ图片20151201081640
QQ图片20151201081811 QQ图片20151201081542 QQ图片20151201081800 QQ图片20151201081724 QQ图片20151201082009 QQ图片20151201081841 QQ图片20151201081657
QQ图片20151201081710 QQ图片20151201081825 QQ图片20151201082021 QQ图片20151201082505 QQ图片20151201082322 QQ图片20151201082515 QQ图片20151201082538
QQ图片20151201082310 QQ图片20151201082432 QQ图片20151201082644 QQ图片20151201082110 QQ图片20151201082421 QQ图片20151201082137 QQ图片20151201082344
QQ图片20151201082137 QQ图片20151201082744 QQ图片20151201082443 QQ图片20151201082632 QQ图片20151201082558 QQ图片20151201082213 QQ图片20151201082813

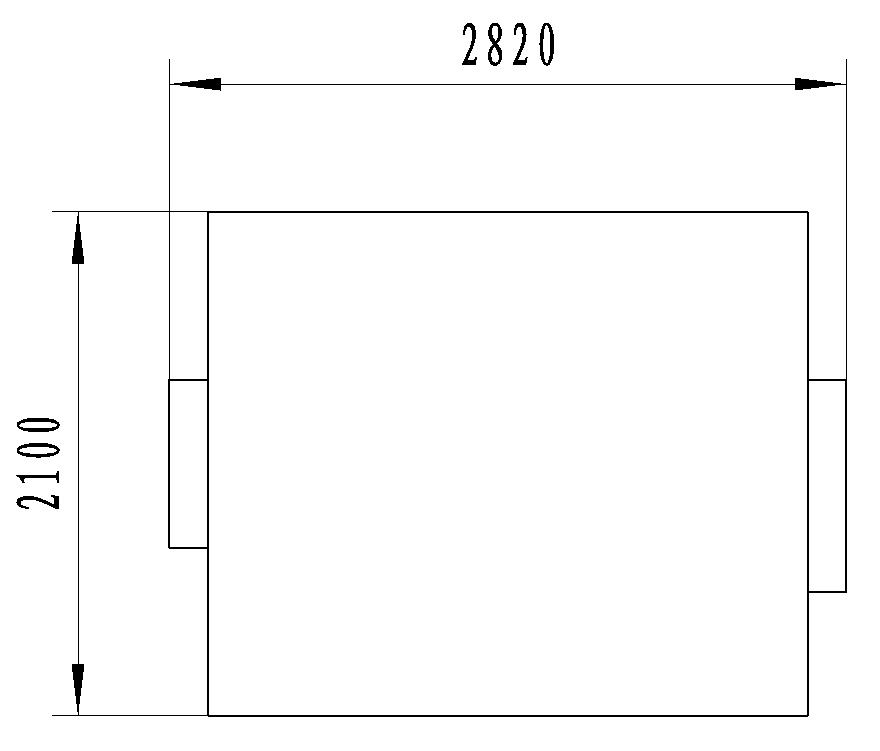

Machine Layout :

DBJ2 mattress repack machine layout size


The machine will be packed in two plywood wooden cases.

Package 1: 780x700x1350 mm
Package 2: 950x950x850 mm


Total G.W.: 340 kgs
