FXQ1 Manual Emulated Shape Cutting Machine

Quantity:
  • square. sifang

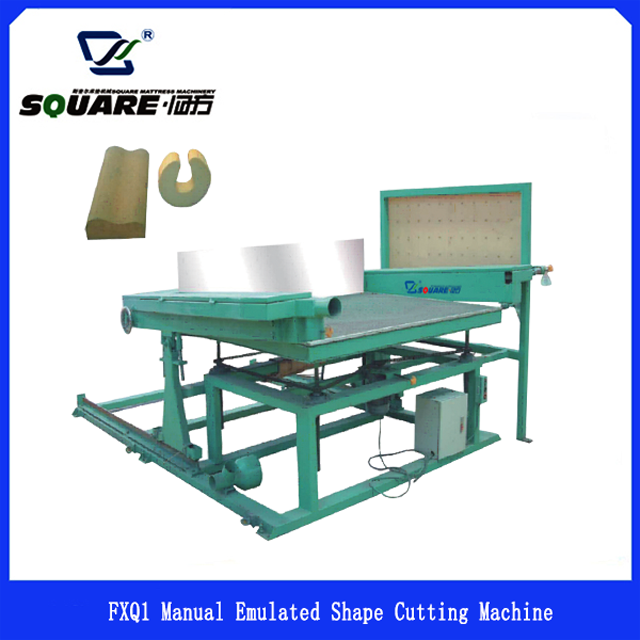

FXQ1 Manual Emulated Shape Cutting Machine


Main application and performance:

This machine is mostly used for the foam rubber that is especial shape manufactured and sliced work. It is made employ of the model of before hand done different shape and it has been especial shape product finished column, camber, pillow etc.



Product Specification:

Cutting width max. W1200 x L1200 mm W1500 x L1200 mm
Cutting height max.                                                        600 mm
Total power of motor                                                         3.8 kw
Cutter band total length                6200 mm                   6900 mm
Machine weight                                                       1000 kg
Machine external size L2500 x W2000 x H1500 mm L3000 x W2600 x H1500 mm

Cutting width max. W1200 x L1200 mm W1500 x L1200 mm
Cutting height max.                                                        600 mm
Total power of motor                                                         3.8 kw
Cutter band total length                6200 mm                   6900 mm
Machine weight                                                       1000 kg
Machine external size L2500 x W2000 x H1500 mm L3000 x W2600 x H1500 mm
