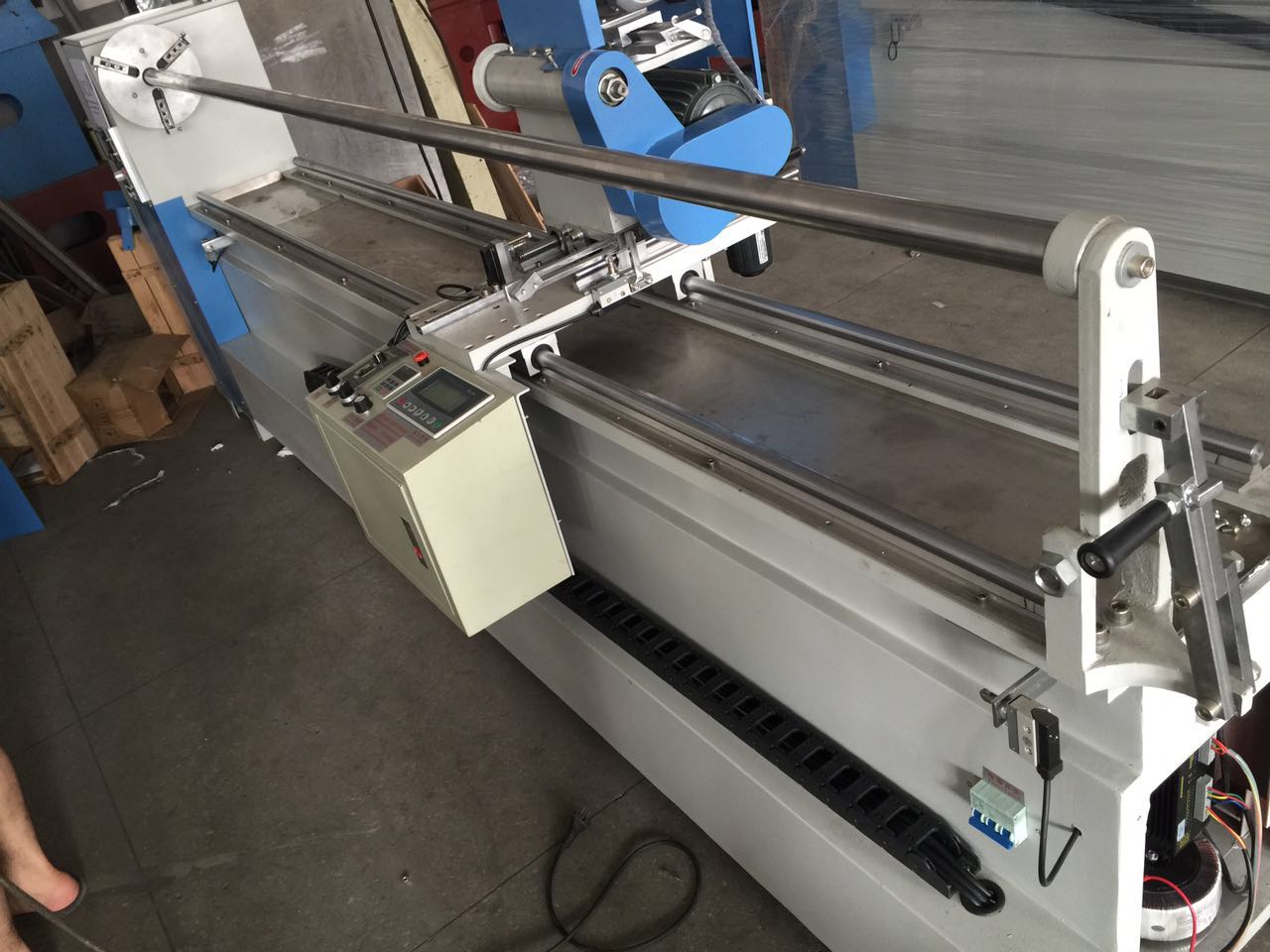

ZM170 Automatic Fabric Rolling Slitting and Cutting Machine

Automatic Fabric Rolling Slitting and Cutting Machine is used for striping of various widths of materials like fabric, non-woven fabric, tent, umbrella, yacht, foam, leather, and plastic.

Quantity:
  • ZM170
  • square. sifang
  • 84522190

ZM170 Automatic Fabric Rolling Slitting and Cutting Machine


Fabric rolling slitting and cutting machine suitable for: Cloth, nonwoven fabric, tent, umbrella,sponge foam, leather, reflective material, plastic, paper, double side adhesive tape,acetate various fabric, reinforced tape, electric conductive fabric, copper foil.


Features:
1. Principal axis and circular knife use CVT system, it enable to change rotating speed and control positive/negative switching.
2. Provided with the automatic system, can be sharpened without move blades; With dust cleaning device, keep fabric and strack clean.
3.Using imported high precision system to control cutting width, with precision ball screw and slide, control cutting width of 0.1mm, to achieve high precision cutting.




Product Specification:

Fabric Width:  1.7m/2.05m/2.4m Fabric Speed : 0-800 rev/min
Cloth Diameter:  300/400mm (Can be customized ) fabric shaft diameter:  37mm
Fabric Motor power:  0.75Kw Blade motor power:  1.5Kw
Min Cutting Width:  2mm Voltage:  380V/220V
Dimensions:  2.8 m x1.5 m x0.85 m
