Computerized Four Heads Tack&Jump Mattress Border Side Stitching Machine

Quantity:
  • DS
  • square. sifang
  • 84522190

Four heads tack and Jump Mattress border side stitching machine


main application & performance :

Model DS four heads tack and jump mattress border side stitching machine is suitable for pattern tacking on the mattress borders. The pattern designs, the sizes, and number of stitches can be set according to the demands within the range. Using different patterns to decorate the mattress borders can make the mattress to be with more fashionable.

.

 machine features:

1.       4 brother machine heads, durable

2.       PLC control, touch screen.

3.       Pattern edit & pattern selection function

4.       Thread breakage detection and fabric run out sensor

5.       Automatic rolling device and feeding device

6.       Front & rear puller mechanism

7.       High-end thread stand and LED light

8.       Electronic bobbin winder

9.       First well-know internation brand electronics


The 4 sets of machine heads can work together at the same time or work separately for much higher production efficiency


 Main parameter:

Sewing speed

200 rpm

Sewing thickness

<=30 mm

Sewing width

100-400 mm

Stitch length

0-5 mm

yield

1-5 m/min

power

3000w

voltage

220V, 50/60 Hz

Dimension

3300 (L)X1700(W)X1900(H) mm (without feeding frame)

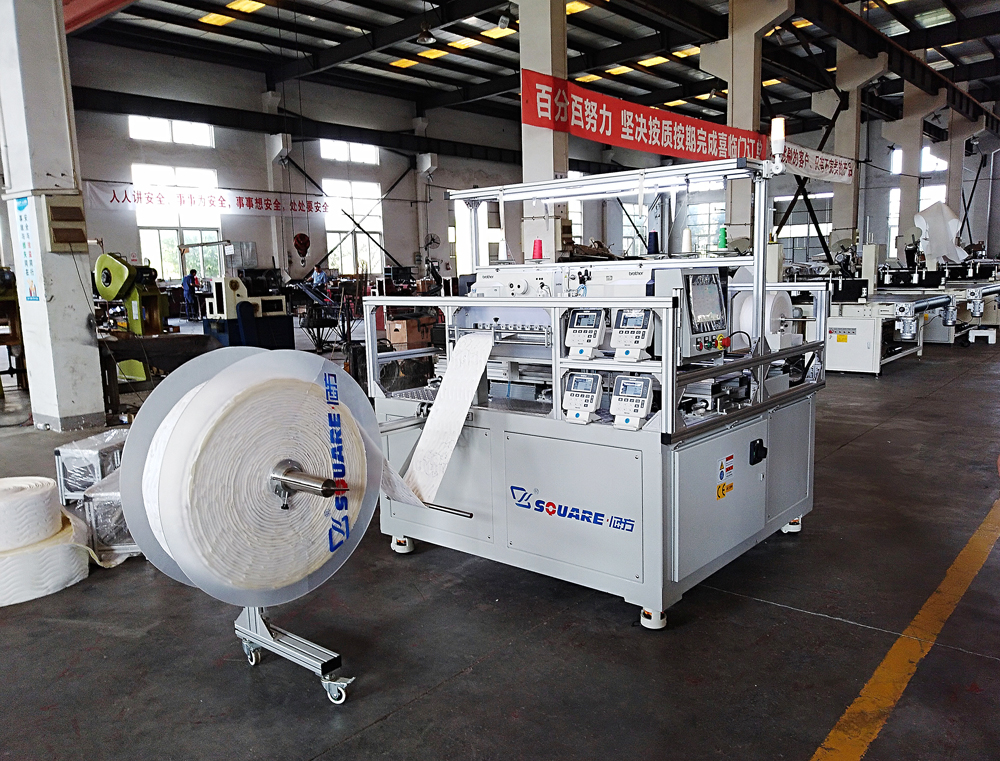

four heads tack and jump mattress border side stitching machine

computer control four heads tack&jump mattress border side stitching machine

sample made by four heads computerized tack and jump mattress border stitching machine
