WKH2 Double Serging and Quilting Machine for mattress border

The machine is mainly used for quilting the decorative border of the mattress.
  • WKH2
  • square. sifang

WKH2 Double Serging and Quilting Machine

Main application and performance:

This computer controlled border double serging and quilting machine have 5 independent flanging and chain sewing head, controlled by PLC program, it automatically hems the mattress border as overlock the two sides at the same time, and then produces high quality horizontal stitched after that vertical stitched mattress border, fully automatic operation, thread break detectors, automatic shut down sensor-detecting material blockage in roller, all are included, also we can special design according to your need.

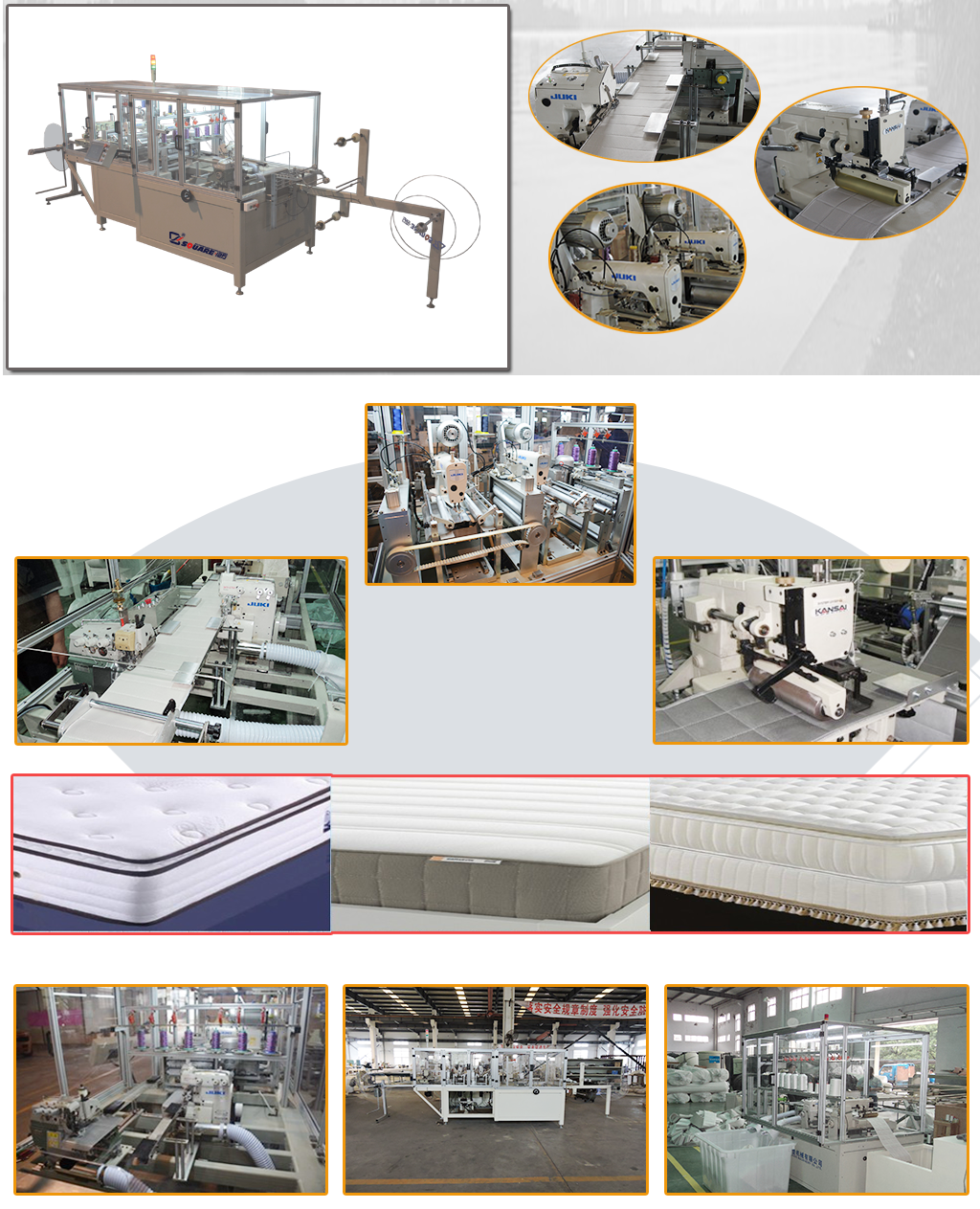

WKH2 double serging and quilting machine details

Product Specification:

Available fabric width                 160 ~ 300mm
Thread Pitch                                       6.35mm×N(Integral multiple of  6.35)
Sewingspeed                                                    6m/minMax.
Material thickness                                                       ≤15mm
Power                                                              5KW
Rated air pressure 0.7Mpa
Sewing head quantity 5


double serging and quilting machinecertificate

CNC Machining Center:

double serging and quilting machine cnc machining center

Conventional Machine Center:
double serging and quilting machine conventional machine center

 Parts Warehouse:

double serging and quilting machine parts-warehouse




mattress machine exhibition

Mattress Brand we served:
QQ图片20151201081856 QQ图片20151201082047 QQ图片20151201081748 QQ图片20151201081908 QQ图片20151201081956 QQ图片20151201081928 QQ图片20151201081640
QQ图片20151201081811 QQ图片20151201081542 QQ图片20151201081800 QQ图片20151201081724 QQ图片20151201082009 QQ图片20151201081841 QQ图片20151201081657
QQ图片20151201081710 QQ图片20151201081825 QQ图片20151201082021 QQ图片20151201082505 QQ图片20151201082322 QQ图片20151201082515 QQ图片20151201082538
QQ图片20151201082310 QQ图片20151201082432 QQ图片20151201082644 QQ图片20151201082110 QQ图片20151201082421 QQ图片20151201082137 QQ图片20151201082344
QQ图片20151201082137 QQ图片20151201082744 QQ图片20151201082443 QQ图片20151201082632 QQ图片20151201082558 QQ图片20151201082213 QQ图片20151201082813

Machine Layout :

WKH2 double serging and quilting machine layout size

The machine will be packed in two plywood wooden cases.

Package 1: 3000x1550x1920 mm
Package 2: 1650x1100x1750 mm

Total G.W.: 1000 kgs
