Mattress tape edge machine for sale Review: how to buy best tape edge machine

Views:102     Author:Site Editor     Publish Time: 2017-07-13      Origin:Site

Mattress tape edge machine for sale Review: how to buy best tape edge machine

 There are Maybe thousands of tape edge machine brands in the world.

But how to choose a best tape edge machine for yourself?


Apart from the amount you will spend, below tips on how to buy best tape edge machine can get your money worth on the investments.



we will take mattress tape edge machine review in an historical evolutional way.

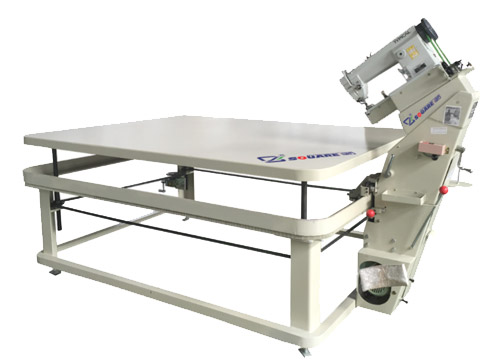

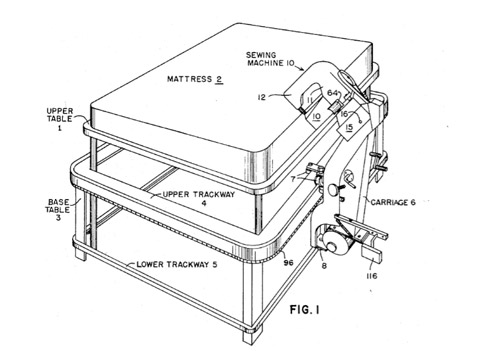

1.      The first tape edge machine was invented by Sir Cash Sr James A in about year 1960. And this is the simplest mattress tape edge machine in history, which is still be used today.

the first tape edge machine invented by Sir Cash Sr James A.jpg


And thanks to the modern technology, the simplest mattress tape edge machine is also evolved into a modern one. With the improved braking system and speed adjusting mechanism, the machine is more easy to use.



 Below is the special feature of this tape edge machine which serving a purchasing guide while you buy the machine:



                              1.  The table of this tape edge machine is raised  up and down by hand (manually).

                                      2.  The walking speed of the carriage is controlled by knee pushing level.

                                      3.  No auto slow down at the corner, while you sew the corner of the mattress, you have to use your knee to push                                                  the knee pushing level to make the speed slow down.

                                      4.  This tape edge machine can only be equipped with a lock stitch sewing head      due to its low speed feature.

                                      5.This machine can only sew 30-280mm thick mattress.



This tape edge machine is more suitable for business starter for its low price feature or for mattress factory who is make thin mattresses, such as foam mattresses, coconut fibre mattresses, cushions, soft pads, sleeping bags and tents.

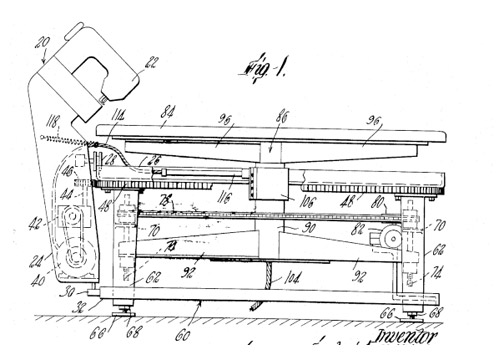

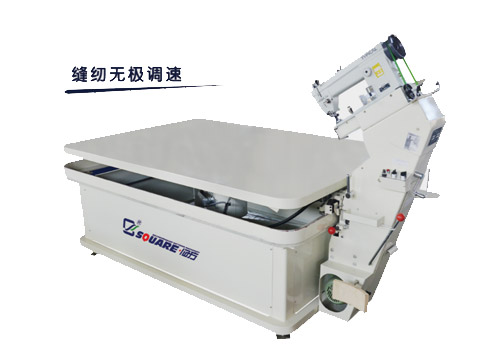

2.      The second tape edge machine which can into history is invented by Kalning Frederick E



A great improvement from the previous manual table lifting tape edge machine.



Compared with the first tape edge machine, it has below features:



                                1.       The pillar plus cross-shaped structure support table firmly, the table is raised and up and down automatically by switching the button on the working panel

                                2.       Sewing thickness range of mattress can be 20-350mm, 20-450mm. you can choose the appropriate one for yourself.

                                3.       the walking speed of the tape edge machine is continuously adjustable by turning the knob on the working panel.

                                4.       Auto slowdown at the corner.

                                5.       It can be equipped with a lock stitch sewing machine or chain stitch sewing machine.



This tape edge machine is more suitable for established mattress factory because it is fast speed nature. You can also choose different brands of the sewing head to be installed on the machine, whether it is a lock stitch sewing head or chain stitch sewing head.

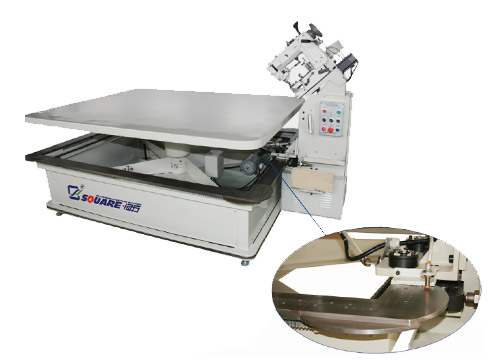

3.      The third came the modern tape edge machine which is the upgrading of Kalning Frederick E’s tape edge machine in its electronic system and mattress table frame.




   Compared with the second tape edge machine, it has below features:



                                  1.       It still adopt the pillar plus cross-shaped structure to support table firmly, the table can be raised and up and down automatically. Its frame has added a precise & durable guide rail, make the carriage movement more smooth and the motion track control more accurate.

                                   2.       With the singer sewing head made in Japan, it makes the sewing of heavy-weight materials more easily, and stitches more beautifully.

                                  3.       Auto speed slow down at the corner

                                  4.       The carriage travel speed and sewing rotate speed is adjusted by inverter

                                 5.      Sewing thickness range of mattress can be 50-500mm, precise guide rail plus various speed control makes the operation easier and achieve higher production efficiency.

                                  6.       Electronic adjustments for the sewing head tilt and working table height, inching the needle breadth wise.



This tape edge machine is more suitable for sewing high class mattress with various layers of sponges.

It is fast and with high working efficiency, and more easy to use that the above two tape edge machines,

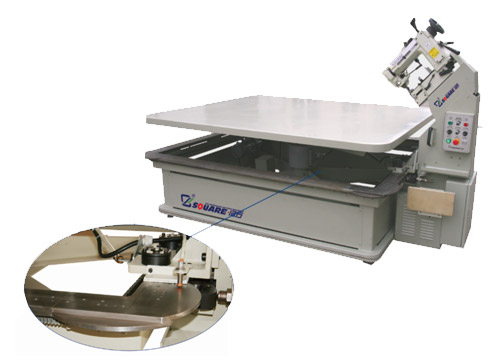

        4.      The fourth came the micro-computer controlled tape edge machine.


Compared with the third Modern tape edge machine, it has below features:




                           1.       With all the feature of the third Modern tape edge machine listed above.

                           2.       The sewing head and walking carriage is driven by servo motors and controlled by PLC.

                           3.       Wider range for height of mattress, it can sewing 50-700mm thick mattress.

                           4.       The machine can provide manifold groups common combination of three sewing head rotary speeds and carriage speeds.

                           5.       The adoption of servo can make the control more precisely.

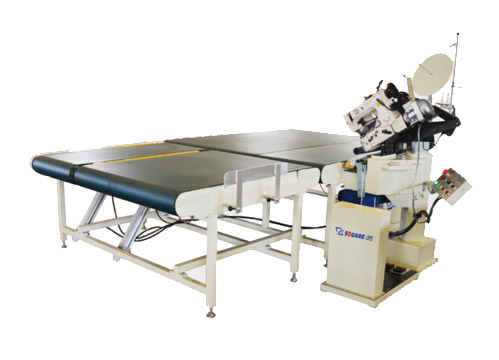

           5.       The fifth came the auto-flipping tape edge machine, some people may also call it the fully automatic tape edge machine:



          Compared with the fourth servo motor driven tape edge machine, it has below features:


                    1.       Rather than moving around, the head is fixed but can move up and down to adapt to different height of mattress.

                    2.       The angle of the head is adjustable when working.

                    3.        The conveying belt moves in and out the mattress. When one side is finished. The machine can turn 90 degree atuomatically to start taping the next side.

                    4.       When the top four sides are completed. The machine can turn the mattress over for taping the other four sides.

                    5.       This machine needs only one operator and there is no need for him to move around or overturn the mattress manually. Thus higher efficiency and less labor is realized.



The above are the major tape edge machines in the market. The cost of the tape edge mattress increases from the top to the bottom. Whether you choose a manual lifting tape edge machine or a fully automatic tape edge machine, it depends on your budget. Whatever your budget is, the most important thing is to get your money worth while you buy the tape edge machine. So find a reliable mattress machine manufacturer to conclude your purchasing.



If you need more info about the machine, you can email us!
