Model FB5 Auto flipping tape edge machine

FB5 is the most advanced tape edge machine with two pneumatic flipping bar. The auto filipping tape edge machine can make the mattress move in and out, corner and flipping automatically. it not only improve the working efficiency and but aslo save the labor.

Quantity:
  • square. sifang
  • FB5

Model FB5  Auto flipping tape edge machine


Main application and Performance

Model FB5 Auto flipping tape edge machine is an ideal equipment for automatic product line of mattress production, by using the structure of moving and fixing sewing head. The tape edge machine could make the mattress move out, corner and flip automatically; its unique abilities such as sewing head quto raising or lowering at the corner, speed auto slowdown at the corner, sewing speed auto recovery after passing corner, adjustable sewing head tilting angle, adjustable sewing head lift, adjustable sewing quality.



Technical Feature:

  1, heavy-duty 300U Chain stitch sewing head and variable speed control, the auto flipping tape edge machine is capable of taping all sizes of mattresses from crib to king.

     2, Specifically designed for today’s heavy mattresses, the tope sewing speed can run up to 3000 RPM.

     3, The operator remains in a stationary sewing position while wide controlled conveyor belts move the mattress. The compression and turning devices built into the machine bring the mattress to the sewing head.

      4, Sewing head could raise or lower and slowdown automatically at the corner, stitch more beautifully.

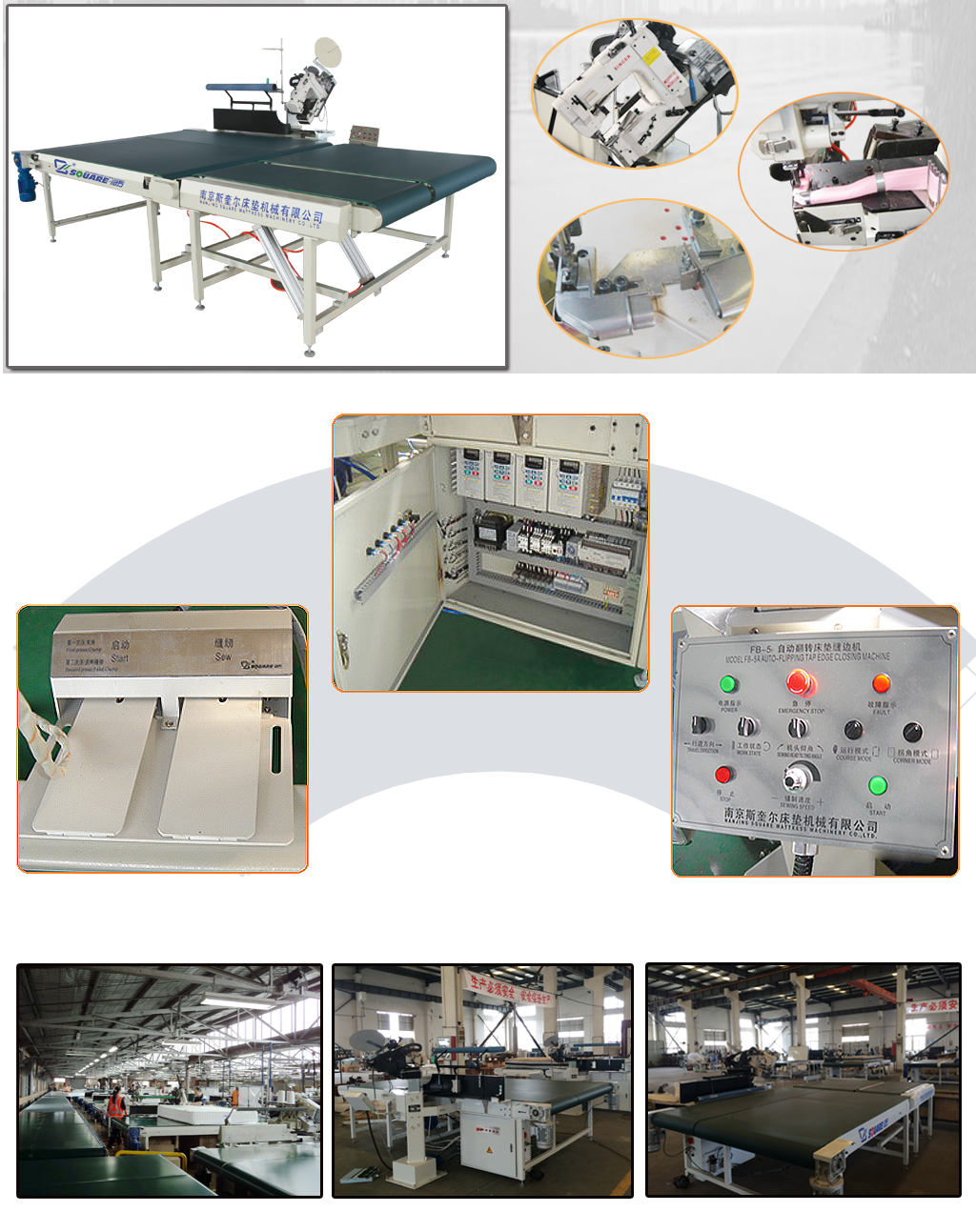

FB5 auto-flipping tape edge machine


Product Specification:

Model FB5
Sewing head type Chain stitch
Sewing head lifting range 0 - 320mm
Tilting angle of Sewing head 25 - 65
Mattress thickness 50 - 400mm
Sewing head speed 1642-2740r/min
Table size 3750 x 1980mm
Travel speed 10-14m/min
Productivity 15-20 pcs/h
Air pressure 0.6-0.8Mpa
Power 3.2KW



Certificate:

 auto-flipping tape edge machine certificate



CNC Machining Center:

auto-flipping tape edge machine machining center

Conventional Machine Center:
auto-flipping tape edge machine conventional machining center



Shipping:

loading-and-packing

Exhibition:

exhibition


Mattress Brand we served:

QQ图片20151201081856 QQ图片20151201082047 QQ图片20151201081748 QQ图片20151201081908 QQ图片20151201081956 QQ图片20151201081928 QQ图片20151201081640
QQ图片20151201081811 QQ图片20151201081542 QQ图片20151201081800 QQ图片20151201081724 QQ图片20151201082009 QQ图片20151201081841 QQ图片20151201081657
QQ图片20151201081710 QQ图片20151201081825 QQ图片20151201082021 QQ图片20151201082505 QQ图片20151201082322 QQ图片20151201082515 QQ图片20151201082538
QQ图片20151201082310 QQ图片20151201082432 QQ图片20151201082644 QQ图片20151201082110 QQ图片20151201082421 QQ图片20151201082137 QQ图片20151201082344
QQ图片20151201082137 QQ图片20151201082744 QQ图片20151201082443 QQ图片20151201082632 QQ图片20151201082558 QQ图片20151201082213 QQ图片20151201082813

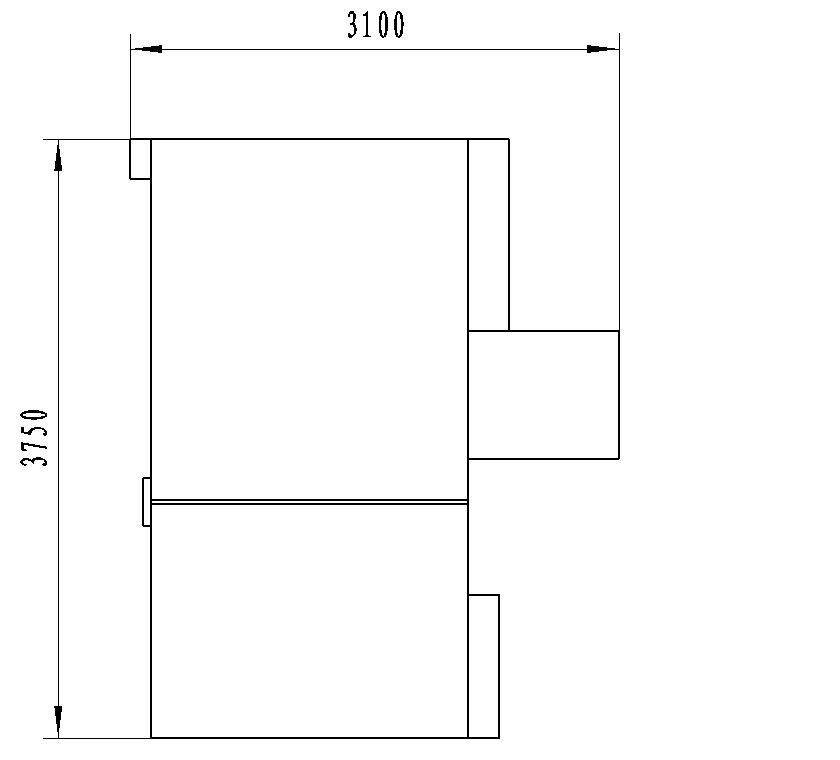

Machine Layout :

FB5


The machine will be packed in three Packages.

Package 1: 3800x2250x920 mm
Package 2: 1300x980x900 mm
Package 3: 1000x600x670 mm

Total G.W.: 1400 kgs
