Model FB6 Mattress Tape Edge Stitching Machine

Sino-Japan cooperative product debut ! Model FB-6 is for manufacturing high-class mattresses. A precision guide track is equipped on its support frame, which makes the walking carriage move more accurately and run more smoothly.
  • FB6
  • square. sifang
  • 84522190

Model FB6 tape edge machine:

Main application and performance:

Model FB6 tape edge machine is maily used for sewing mattress. A precision guide track is equipped on its support frame, which makes the walking carriage move accurately and the machine run smoothly. At the same time, its walking carriage running, sewing head tilting angle and working table height are controlled by electricity. This feature makes operation more convenient. It is a pertect equipment for manufacturing high-class mattress.

Technical Feature:

        1.The pillar plus cross-shaped support table firmly, raiser and lower table by four screw rods at each corner stable. With a precise & durable guide rail, make the carriage movement more smooth and the motion track control more accurate.
        2.With the singer sewing head made in Japan, it makes the sewing of heavy-weight materials more easily, and stitches more beautifully.
        3.The carriage travel speed and sewing rotate speed is adjusted by inverter
        4.Wider range for height of mattress, the electric & knee pushing device controlling the carriage movement, makes the operation easier and achieve higher production efficiency.
        5.Electronic adjustments for the sewing head tilt and working table height, inching the needle breadth wise, using the magnetic clutch to control travelling.
        6.The total quality can be advanced by paying attention to the improved details and its appearance.

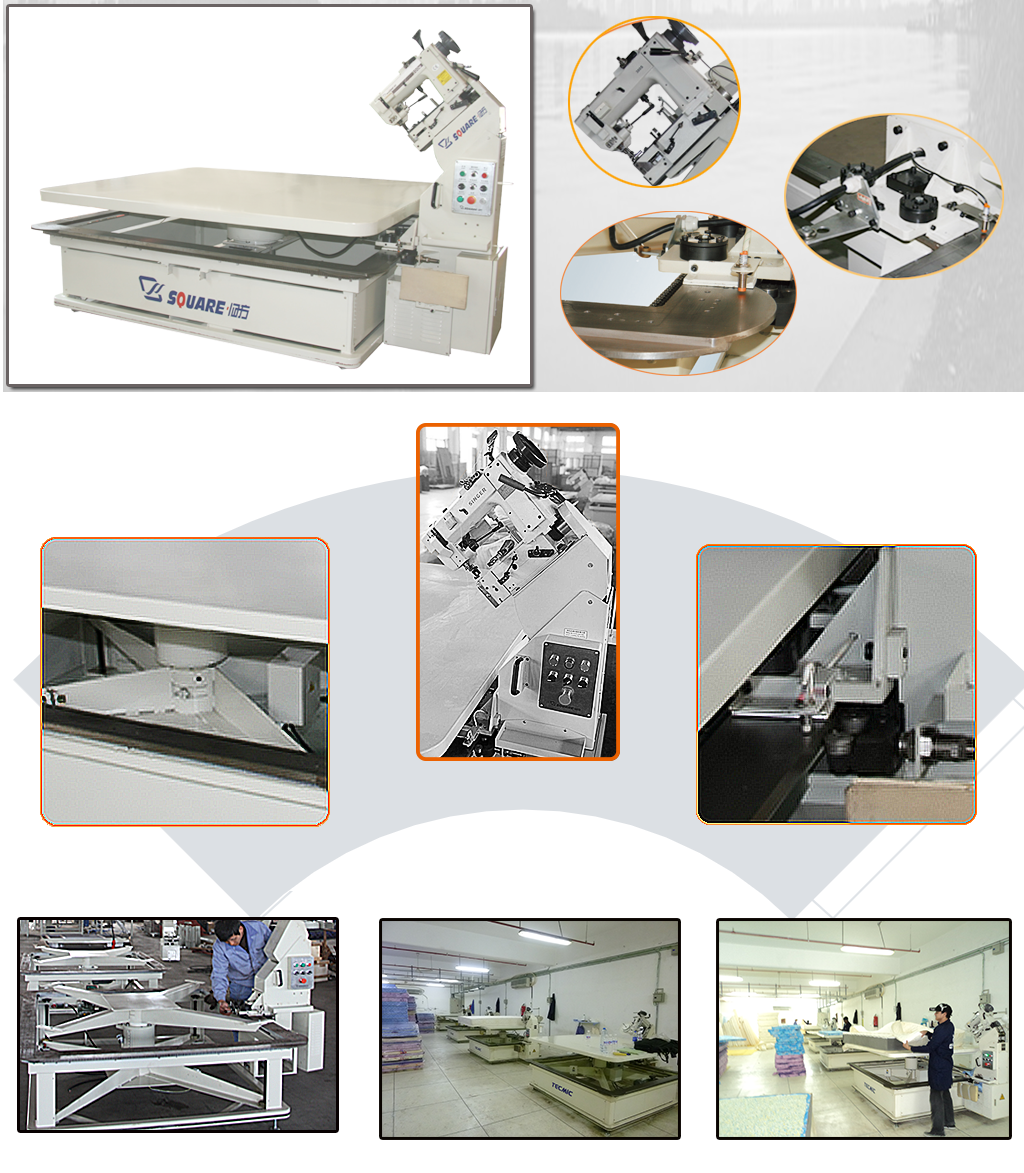

FB6-tape-edge-machine details

Product Specification:

Model  FB6
Sewing head type Chain stitch
Sewing head lifting range 0-200mm
Mattress thickness 50-500mm
Table Size 1600x2000mm, 1800x200mm
Sewing head motor rotary speed Max. 3065 r/min
Carriage speed Max.13.6m/min
Carriage clutching mode  Electromagnet clutch
Productivity 10-20 pcs/h
Motor power 1.65(1.1+0.55) KW


FB6 tape edge machine certificate

CNC Machining Center:

FB6 tape edge machine cnc machining center

Conventional Machine Center:
FB6 tape edge machine conventional machine center




mattress machine exhibition

Mattress Brand we served:

QQ图片20151201081856 QQ图片20151201082047 QQ图片20151201081748 QQ图片20151201081908 QQ图片20151201081956 QQ图片20151201081928 QQ图片20151201081640
QQ图片20151201081811 QQ图片20151201081542 QQ图片20151201081800 QQ图片20151201081724 QQ图片20151201082009 QQ图片20151201081841 QQ图片20151201081657
QQ图片20151201081710 QQ图片20151201081825 QQ图片20151201082021 QQ图片20151201082505 QQ图片20151201082322 QQ图片20151201082515 QQ图片20151201082538
QQ图片20151201082310 QQ图片20151201082432 QQ图片20151201082644 QQ图片20151201082110 QQ图片20151201082421 QQ图片20151201082137 QQ图片20151201082344
QQ图片20151201082137 QQ图片20151201082744 QQ图片20151201082443 QQ图片20151201082632 QQ图片20151201082558 QQ图片20151201082213 QQ图片20151201082813

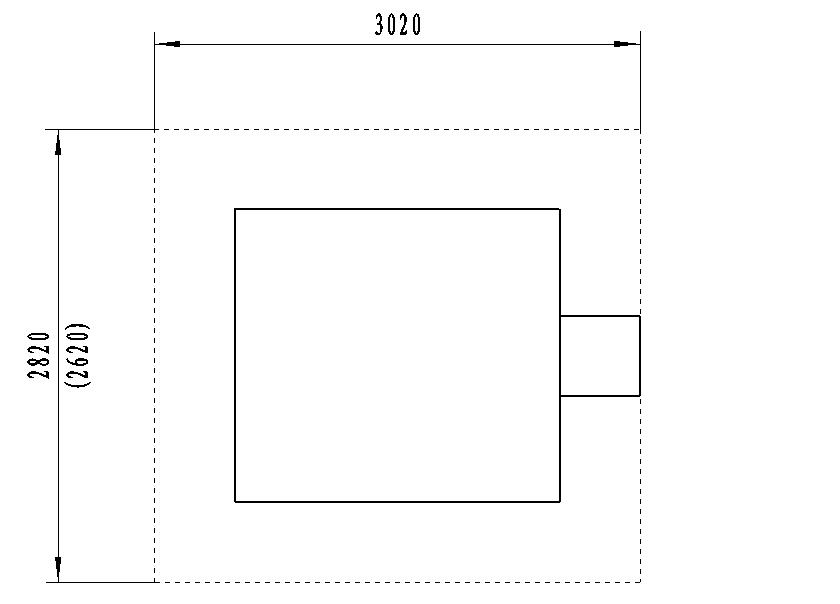

Machine Layout :

FB6 tape edge machine layout size

The machine will be packed in two Packages.

Package 1: 1490x680x900 mm
Package 2: 2250x1750x960 mm

Total G.W.: 1310 kgs
