Model FB3A Mattress Tape Edge Binding Machine

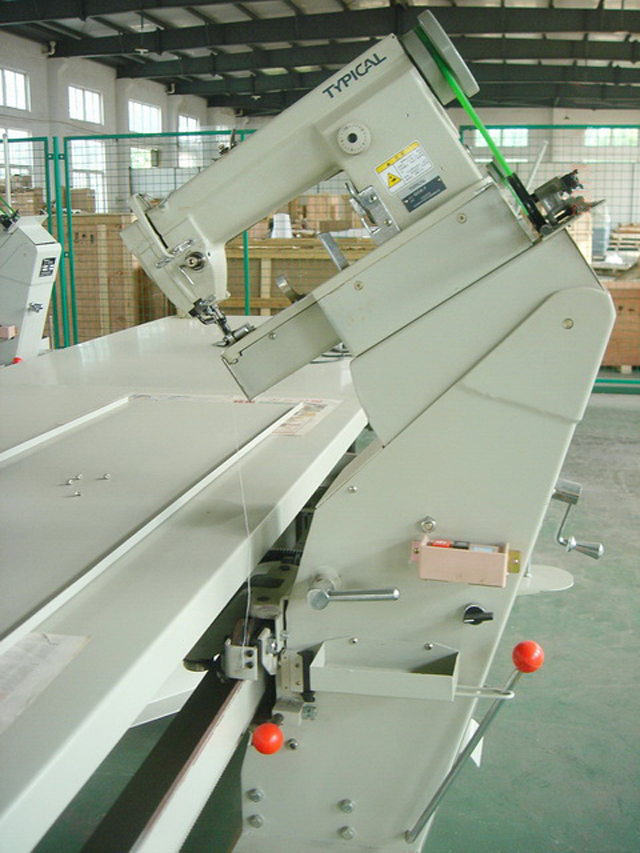

The classic tape edge machine, it is an ideal equipment for mattress and cushions. with the walking & sewing speed adjustable, and the auto slow-down mechanism at the corner, the machine is easy to operate and can sew a very good mattress.

Quantity:
  • FB3A
  • square. sifang

Model FB3A tape edge binding machine


Main application and performance:

Model FB3A tape edge machine is maily used for sewing mattress and cushions. with the table is supported by high-strength independent bearing, the machine's working talbe becomes more stable. An Inside hidden-power-supply column makes the machine have no special requirement on installation.


Technical Feature:

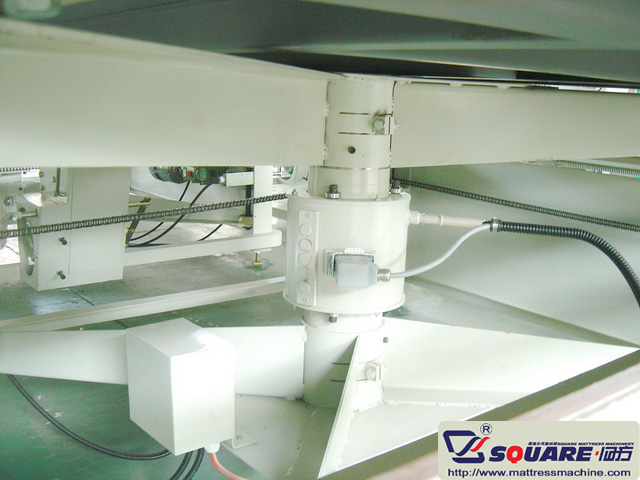

      1.The pillar plus cross-shaped support table firmly, raiser and lower table by four screw rods at each corner stable.
      2.Sewing thickness range of mattress can be 50-300mm, 150-400mm, 250-500mm. you can choose the appropriate one for yourself.
      3.the walking speed and sewing speed of our tape edge machine is continuously adjustable by turning the knob on the working panel.
      4.Auto slowdown at the corner.
      5.the walking speed and sewing speed of our tape edge machine is continuously adjustable by turning the knob on the working panel.

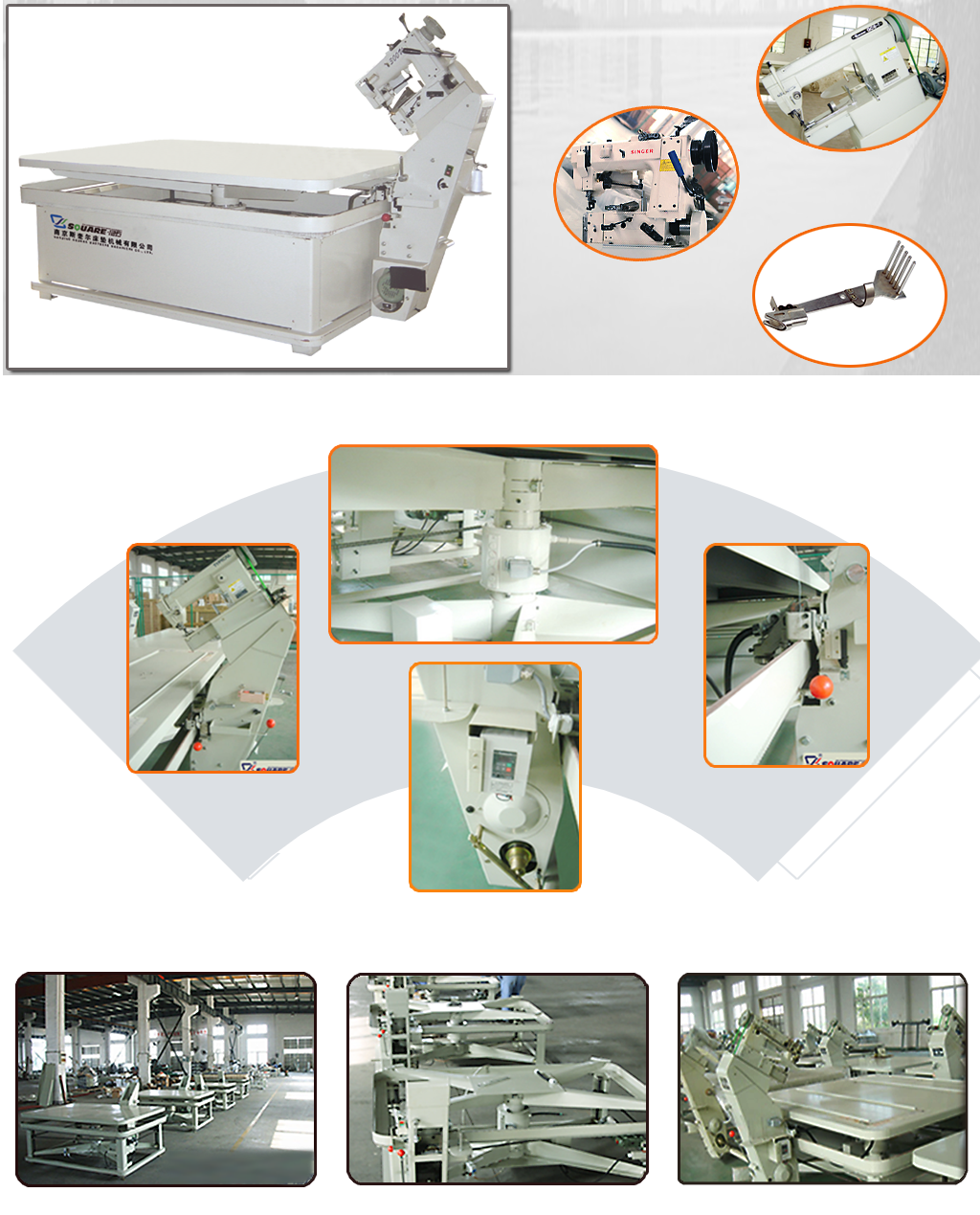

FB3A tape edge machine details
Product Specification:

Model  FB3A
Sewing head type Lock stitch
Corner speed auto slow down Yes
Working angle of the sewing head 35-55 degaree
Sewing thickness range of mattress 50-280mm,150-400mm,250-500mm
Lifting of working table Electric
Size of the working table 1400x1950mm,1550x2050mm,1800x1950mm
Sewing head speed   1100-3000   ( Select according to the type of sewing head)
Carriage speed 5.5-16
Productivity 10-20 pcs/h
Motor type single, three-phase motor
Total Power 1.12KW




Certificate:

FB3A tape edge machine certificate



CNC Machining Center:

FB3A tape edge machine cnc machining center

Conventional Machine Center:
FB3A tape edge machine conventional machine center



Shipping:

loading-and-packing

Exhibition:

mattress machine exhibition


Mattress Brand we served:

QQ图片20151201081856 QQ图片20151201082047 QQ图片20151201081748 QQ图片20151201081908 QQ图片20151201081956 QQ图片20151201081928 QQ图片20151201081640
QQ图片20151201081811 QQ图片20151201081542 QQ图片20151201081800 QQ图片20151201081724 QQ图片20151201082009 QQ图片20151201081841 QQ图片20151201081657
QQ图片20151201081710 QQ图片20151201081825 QQ图片20151201082021 QQ图片20151201082505 QQ图片20151201082322 QQ图片20151201082515 QQ图片20151201082538
QQ图片20151201082310 QQ图片20151201082432 QQ图片20151201082644 QQ图片20151201082110 QQ图片20151201082421 QQ图片20151201082137 QQ图片20151201082344
QQ图片20151201082137 QQ图片20151201082744 QQ图片20151201082443 QQ图片20151201082632 QQ图片20151201082558 QQ图片20151201082213 QQ图片20151201082813





Machine Layout :

FB1 tape edge machine


The machine will be packed in one plywood wooden cases.

Packing size: 2100x1550x1050 mm
G.W.: 640 kgs
