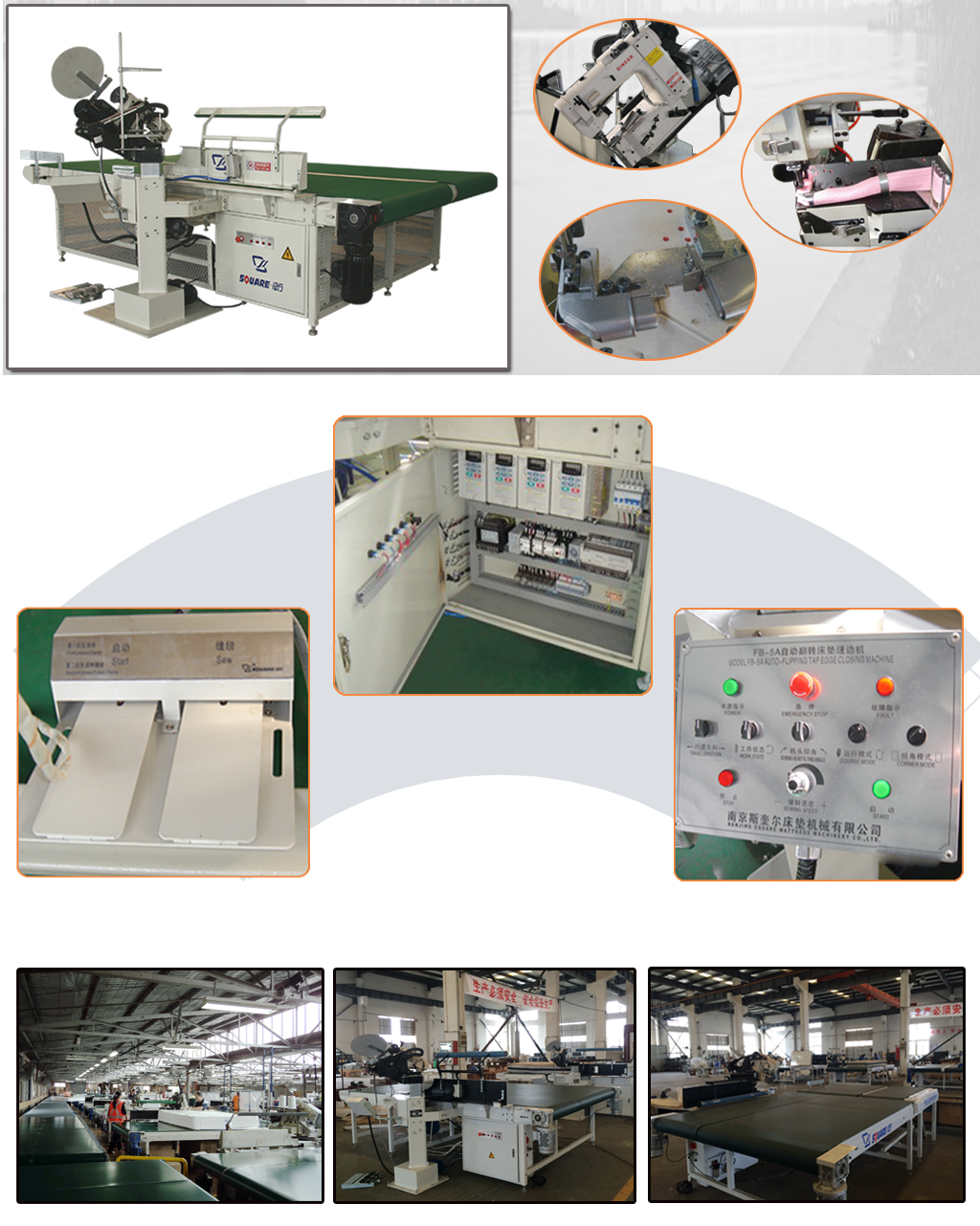

Model FB5A Auto flipping tape edge machine
Main application and performance:
Model FB5 Auto flipping tape edge machine is one of new-style edge closing machines. The tape edge machine adopts split converyor working table, whole frame, the lifting structure adopts precision slide rail and makes a better rigidity of the mahcine.It is controled by PLC, and the auto-flipping tape edge machine have functions of travelling, cornerring and flipping automatically. The functions of automatic adjustment improve the sewing speed and quality. The tape edge machine stable and reliable adjustmen mechanism make the changes of product specifications be more convenient and efficient. It is a perfect equipment to manufacture mattress.
Technical Feature:
1.By using the structure of moving belt and fixed sewing head, operator does not need to move around the mattress to do the sewing.
2.With the singer sewing head made in Japan, it makes the sewing of heavy-weight materials more easily, and stitches more beautifully.
3.With PLC control, mattress can move in and move out, corner and flip automatically, which quite save the operator’s strength.
4.Sewing head can be auto raising or lowering at the corner, speed auto slowdown at the corner, sewing speed auto recovery after passing the corner of mattress.
5.sewing head tilt and sewing head lift can be adjusted automatically.
6.Split conveyor working table Plus the precision slide rail inside the lifting structure makes a better rigidity of the machine.
Product Specification:
Model | FB5A |
Sewing head type | Chain stitch |
Sewing head lifting range | 0 - 320mm |
Tilting angle of Sewing head | 25 - 65 |
Mattress thickness | 50 - 400mm |
Sewing head speed | 1642-2740r/min |

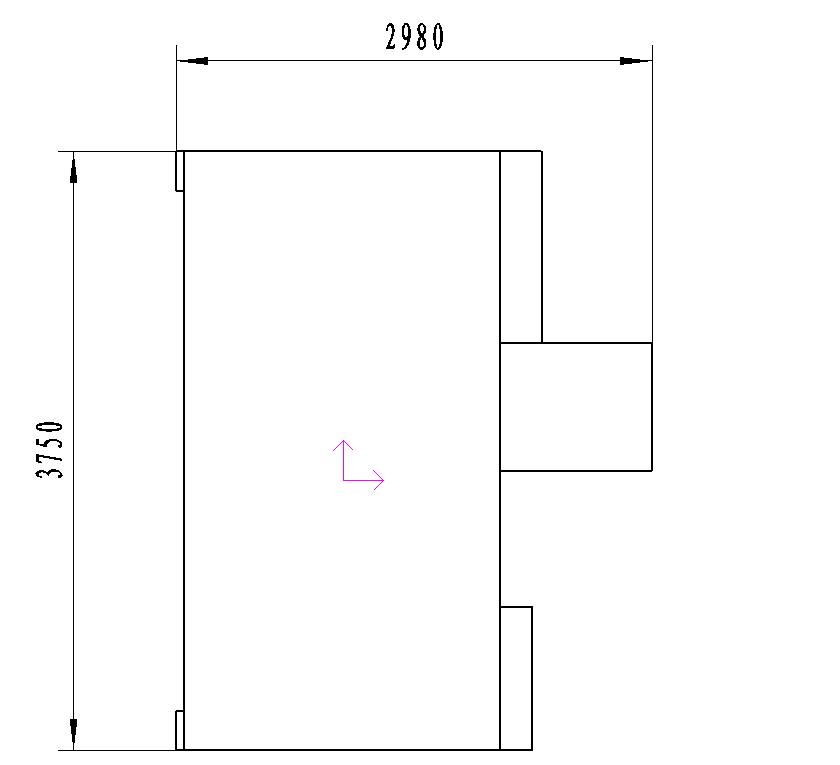

Table size | 3750 x 1980mm |
Travel speed | 10-14m/min |
Productivity | 15-20 pcs/h |
Air pressure | 0.6-0.8Mpa |
Power | 2.8KW |
Certificate:
CNC Machining Center:
Conventional Machine Center:
Shipping:
Exhibition:
Mattress Brand we served:
