Model FB1 Manual Mattress Tape Edge Machine

FB1 tape edge machine is the cheapest manual tape edge machine for new starter.
  • FB1
  • square. sifang

Model FB1 manual mattress tape edge machine

Main application and Performance:

Model FB1 manual mattress tape edge machine is used to sew up surface and wall cloth of a mattress; It can also be used to sew other similatives, such as soft mattress, soft pads for sofa and sleeping bags. Equipped with a hanging rotary power supply system, the machine can perform a smooth and continuous sewing, or a point-fixed sewing within its sewing track, additionally, sewing speed could by the knee lever.

Technical Feature:
  1.Equipped with imported or China-made sewing head according to customers requirement.
   2.Hand-controlled lifting table, hand-controlled titling of sewing head.
  3.Hand-controlled speed for moving of carriage and sewing, hand-controlled slowdown at corners.
   4.Straight, enen and trim seam.
   5.Low noise, low vibration, stable performance.

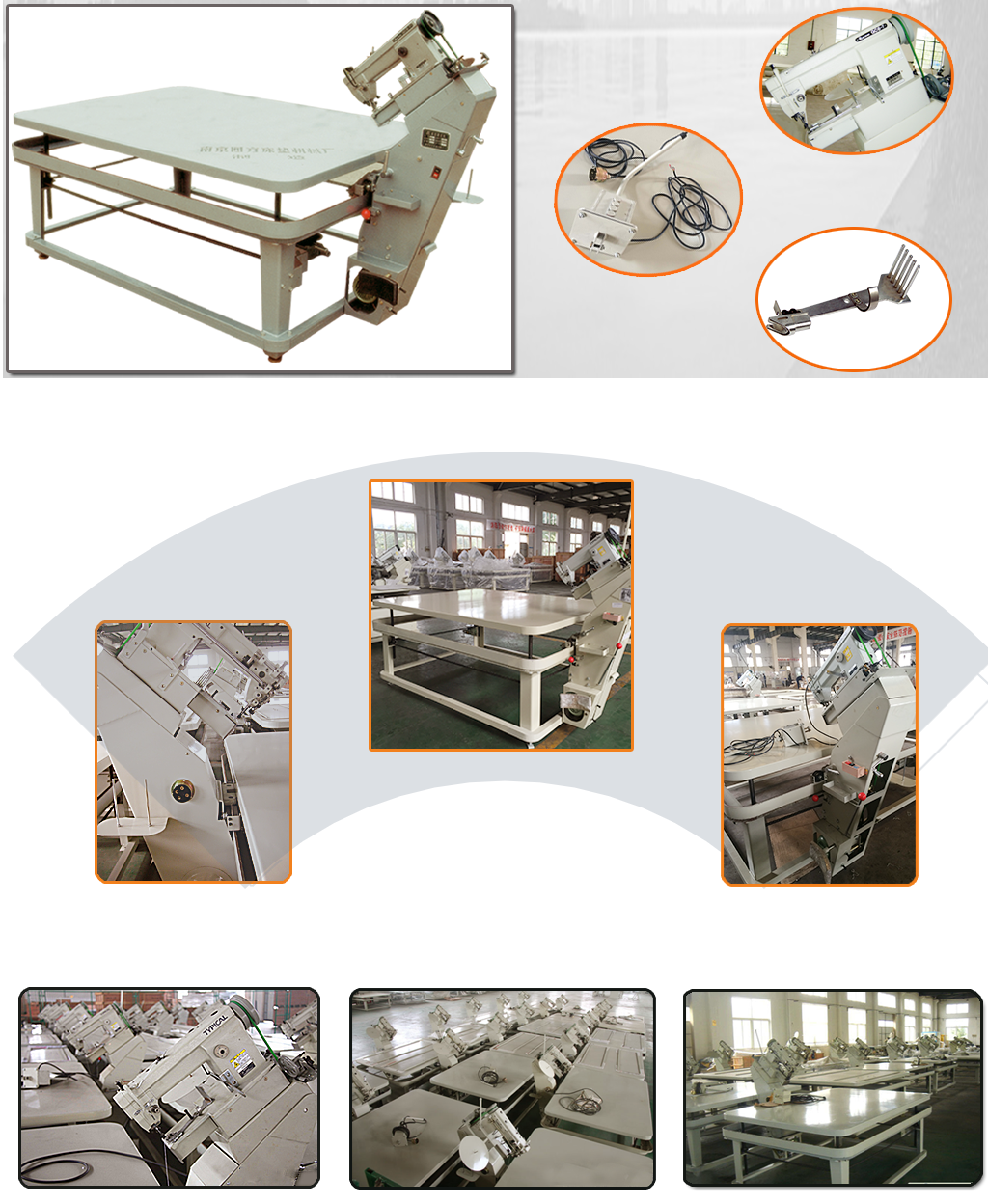

 FB1 tape edge machine details
Product Specification:

Model  FB1
Sewing head type Lock stitch
Working angle of the sewing head 35-55 degree
Carriage speed 5.5-7.5m/min (pulley steplessly adjusted)
Table Size 1400x1950mm,1550x2050mm,1800x1900mm
Sewing thickness range of mattress 50-280mm
Motor power 0.75 KW


FB1 tape edge machine certificate

CNC Machining Center:

FB1 tape edge machine cnc machining center

Conventional Machine Center:
FB1 tape edge machine conventional machining center

 Parts Warehouse:

FB1 tape edge machine parts-warehouse




mattress machine exhibition

Mattress Brand we served:

QQ图片20151201081856 QQ图片20151201082047 QQ图片20151201081748 QQ图片20151201081908 QQ图片20151201081956 QQ图片20151201081928 QQ图片20151201081640
QQ图片20151201081811 QQ图片20151201081542 QQ图片20151201081800 QQ图片20151201081724 QQ图片20151201082009 QQ图片20151201081841 QQ图片20151201081657
QQ图片20151201081710 QQ图片20151201081825 QQ图片20151201082021 QQ图片20151201082505 QQ图片20151201082322 QQ图片20151201082515 QQ图片20151201082538
QQ图片20151201082310 QQ图片20151201082432 QQ图片20151201082644 QQ图片20151201082110 QQ图片20151201082421 QQ图片20151201082137 QQ图片20151201082344
QQ图片20151201082137 QQ图片20151201082744 QQ图片20151201082443 QQ图片20151201082632 QQ图片20151201082558 QQ图片20151201082213 QQ图片20151201082813

Machine Layout :

FB1 tape edge machine

The machine will be packed in one plywood wooden cases.

Packing size: 2100x1550x1050 mm
G.W.: 468 kgs
