Automatic Mattress Border production line measuring, marking and cutting

mattress border production line combines four important border production operations into one simple operation. Border Marking automatically marks the border for later attachment of mattress handles, marks the border for the venting operation, measures the material to the desired length and finally cuts the finished border – all in one automatic operation

Quantity:
  • CBJ1
  • square. sifang
  • CBJ1

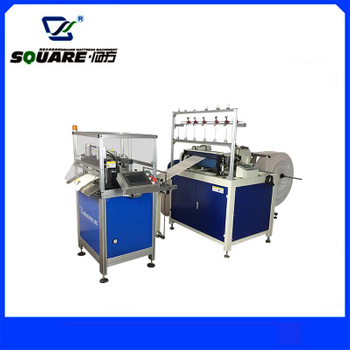

Automatic Mattress Border  production line measuring, marking and cutting


Main application and performance:

mattress border production line combines four important border production operations into one simple operation. Border Marking automatically marks the border for later attachment of mattress handles, marks the border for the venting operation, measures the material to the desired length and finally cuts the finished border – all in one automatic operation

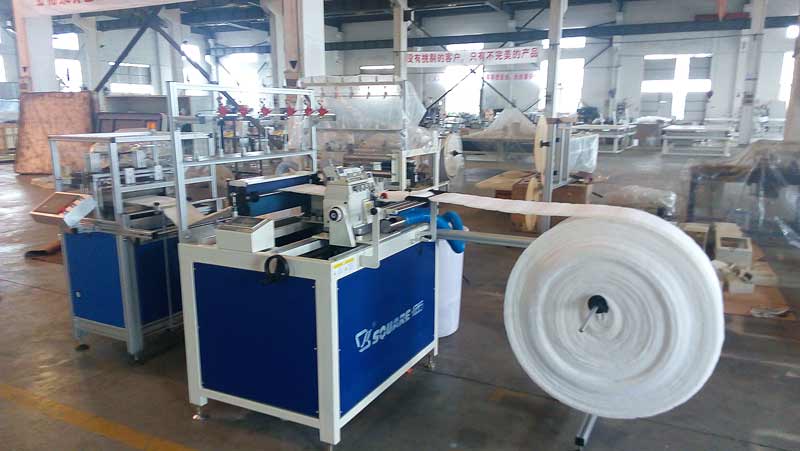

CBJ1 mattress border measure cut and (mark) machine.jpg

Product Specification:


Max feed speed 25 m/min (adjustable)
Material thickness less than 20 mm
Max cut material width 400 mm
Min cut material width 50 mm
Inaccuracy 5 mm
Air consumption 0.6-0.8 Mpa
Voltage 220 V
Machine layout dimension 2 X 1.1 X 1.2 m
Power 750W

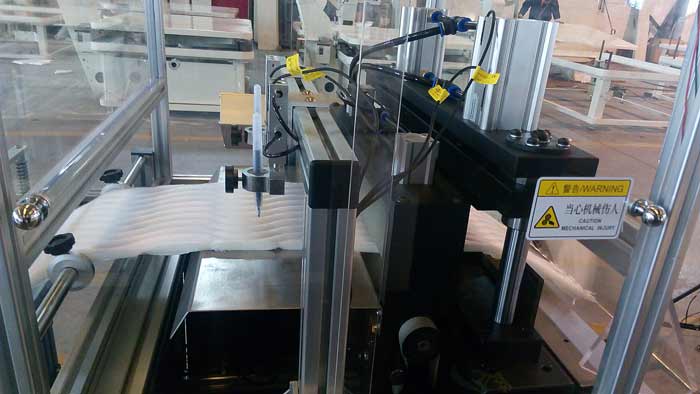

CBJ1 mattress border measure cut and (mark) machine detail.jpg


Certificate:

mattress handle sewing/cutting machine certificate



CNC Machining Center:

mattress handle sewing/cutting machine cnc machining center

Conventional Machine Center:
mattress handle sewing/cuting machine conventional machine center



 Parts Warehouse:

mattress handle sewing/cuting machine parts-warehouse



Shipping
:


loading-and-packing

Exhibition:

mattress machine exhibition


Mattress Brand we served:

QQ图片20151201081856 QQ图片20151201082047 QQ图片20151201081748 QQ图片20151201081908 QQ图片20151201081956 QQ图片20151201081928 QQ图片20151201081640
QQ图片20151201081811 QQ图片20151201081542 QQ图片20151201081800 QQ图片20151201081724 QQ图片20151201082009 QQ图片20151201081841 QQ图片20151201081657
QQ图片20151201081710 QQ图片20151201081825 QQ图片20151201082021 QQ图片20151201082505 QQ图片20151201082322 QQ图片20151201082515 QQ图片20151201082538
QQ图片20151201082310 QQ图片20151201082432 QQ图片20151201082644 QQ图片20151201082110 QQ图片20151201082421 QQ图片20151201082137 QQ图片20151201082344
QQ图片20151201082137 QQ图片20151201082744 QQ图片20151201082443 QQ图片20151201082632 QQ图片20151201082558 QQ图片20151201082213 QQ图片20151201082813



Machine Layout :

CLD3 automatic handle sewing/cutting machine layout size


The machine will be packed in two plywood wooden cases.

Package 1: 1350x750x1350 mm
Package 2: 1600x750x1550 mm

Total G.W.: 200 kgs
