KB4 Multifunction Flanging Machine

KB4 flanging machine is to overlock mattress quilt and hand-pulling fabric together. It is for mattress panel overlocking or mattress border overlocking

Quantity:
  • KB4
  • square. sifang
KB4 Multifunction Flanging Machine


Main application and performance:

With Model KB4 multifunction flanging machine, mattress quilt and hand-pulling fabric may be over locked and sew up together simultaneously. It has the feature of double air cylinder, five threads, adjustable presser foot pressure, and stepless speed regulation. It is suitable for sewing a variety of texture fabric.

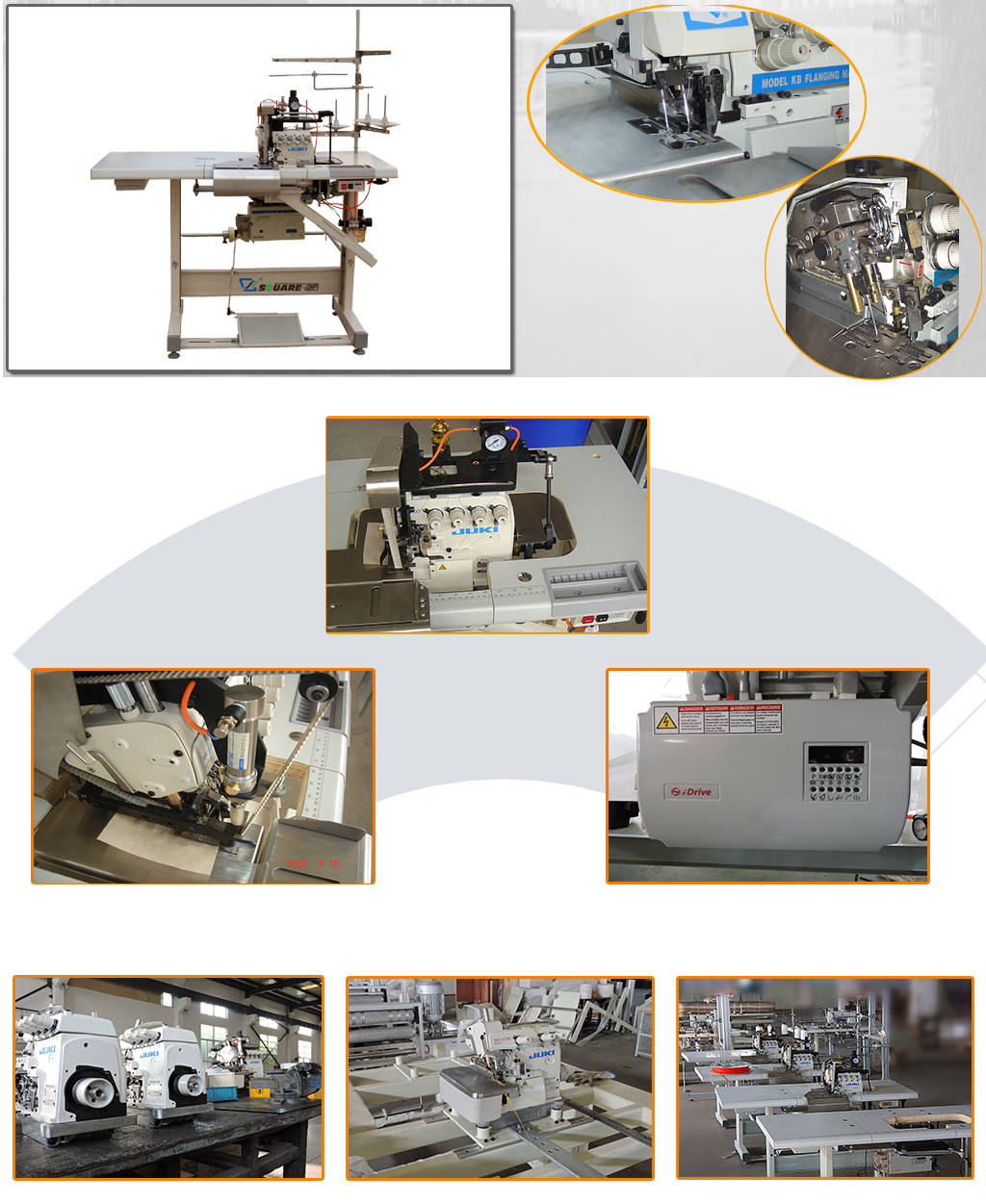

KB4 multifunction flanging machine details


Product Specification:

Model KB4
Max sewing thickness 70mm
Sewing width 25mm
Presser foot lift height 15mm
Stitch 0-6mm (adjustable)
Max sewing speed 5000 (s.p.m)
Rated Pressure 0.5-0.8 Mpa
Sewing head type JUKI
Upper feed belt available Yes
Needle bar type Double-bar
Motor power 560W


Certificate:

multifunction flanging machine certificate



Workship:

Nanjing square mattress machine factory-workshop
 Parts Warehouse:

Multifunction flanging machine parts-warehouse




Shipping
:


loading-and-packing

Exhibition:

mattress machine exhibition


Mattress Brand we served:
QQ图片20151201081856 QQ图片20151201082047 QQ图片20151201081748 QQ图片20151201081908 QQ图片20151201081956 QQ图片20151201081928 QQ图片20151201081640
QQ图片20151201081811 QQ图片20151201081542 QQ图片20151201081800 QQ图片20151201081724 QQ图片20151201082009 QQ图片20151201081841 QQ图片20151201081657
QQ图片20151201081710 QQ图片20151201081825 QQ图片20151201082021 QQ图片20151201082505 QQ图片20151201082322 QQ图片20151201082515 QQ图片20151201082538
QQ图片20151201082310 QQ图片20151201082432 QQ图片20151201082644 QQ图片20151201082110 QQ图片20151201082421 QQ图片20151201082137 QQ图片20151201082344
QQ图片20151201082137 QQ图片20151201082744 QQ图片20151201082443 QQ图片20151201082632 QQ图片20151201082558 QQ图片20151201082213 QQ图片20151201082813


Model KB4
Max sewing thickness 70mm
Sewing width 25mm
Presser foot lift height 15mm
Stitch 0-6mm (adjustable)
Max sewing speed 5000 (s.p.m)
Rated Pressure 0.5-0.8 Mpa
Sewing head type JUKI
Upper feed belt available Yes
Needle bar type Double-bar
Motor power 560W
