SKB Mattress Double Serging Machine

This machine is mainly used to flange mattress border.It is a fully automatic machine which is quite save labor and time.
  • square. sifang

SKB Double Serging Machine

Main application and performance:

This machine is mainly used to flange the mattress border. It has two independent flanging/sewing head, flanging/sewing head driving by inverter, feeding by the polyurethane rollers, winding synchronously, auto-cutting excessive material. Additionally, it is equipped with a waste-collecting device by vacuum, thread broken detection device and material plice auto-stop device.

Technical Feature:

1. Auto sewing and rewinding system;

2. Broken thread protection and auto stops;

3. Auto stops when raw material depleted;

4. Auto excessive material cutting;

5. Vacuum waste material collecting device;

6. fully automatic which is quite save labor.

SKB double serging machine details
Product Specification:


Serging mode single border, dual border
Overlocking width 6.4mm
Available fabric width 180-500mm (adjustable)
Sewing speed 15-30 m/min (adjustable)
Max. Material thickness  ≤20mm (middle density)
Needle pitch 6 mm
Max. Presser lift 8mm
Rated air pressure 0.7 Mpa
Power 2.2kw



SKB double serging machine certificate

CNC Machining Center:

SKB double serging machine cnc machining center

Conventional Machine Center:
SKB double serging machine conventional machine center

 Parts Warehouse:

SKB double serging machine parts-warehouse




mattress machine exhibition

Mattress Brand we served:

QQ图片20151201081856 QQ图片20151201082047 QQ图片20151201081748 QQ图片20151201081908 QQ图片20151201081956 QQ图片20151201081928 QQ图片20151201081640
QQ图片20151201081811 QQ图片20151201081542 QQ图片20151201081800 QQ图片20151201081724 QQ图片20151201082009 QQ图片20151201081841 QQ图片20151201081657
QQ图片20151201081710 QQ图片20151201081825 QQ图片20151201082021 QQ图片20151201082505 QQ图片20151201082322 QQ图片20151201082515 QQ图片20151201082538
QQ图片20151201082310 QQ图片20151201082432 QQ图片20151201082644 QQ图片20151201082110 QQ图片20151201082421 QQ图片20151201082137 QQ图片20151201082344
QQ图片20151201082137 QQ图片20151201082744 QQ图片20151201082443 QQ图片20151201082632 QQ图片20151201082558 QQ图片20151201082213 QQ图片20151201082813

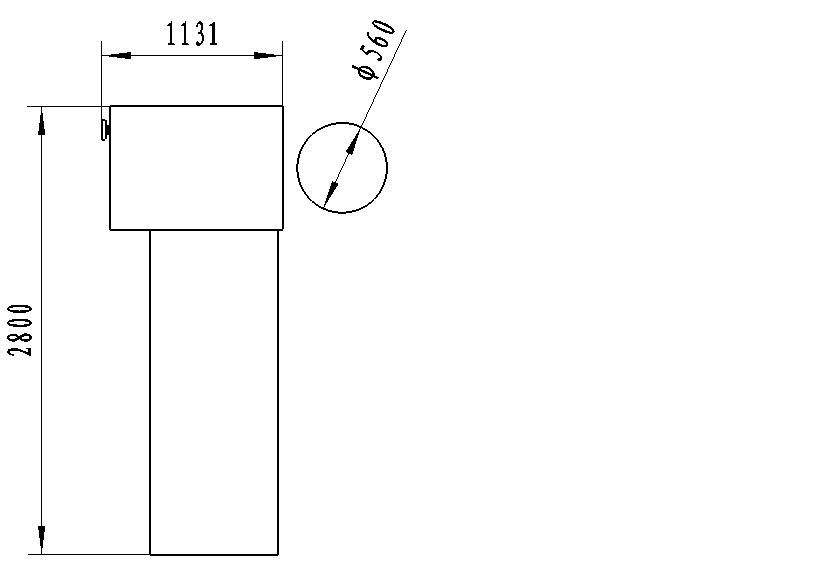

Machine Layout :

SKB double serging machine layout size

The machine will be packed in one plywood wooden cases.

Packing size: 1750x1350x1450 mm

Total G.W.: 500 kgs
