KB1A Multifunction Flanging Machine

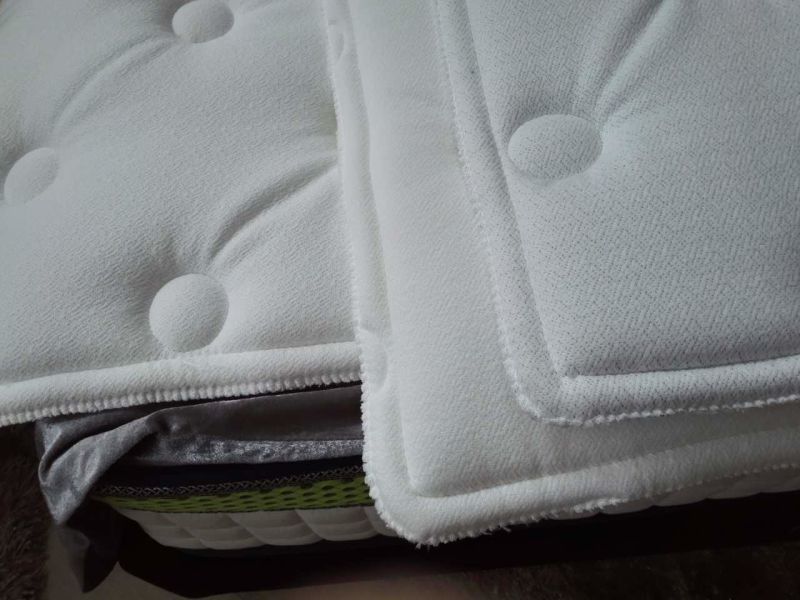

KB1A flanging machine is to overlock mattress quilt and hand-pulling fabric together. It is for mattress panel overlocking or mattress border overlocking

Quantity:
  • square. sifang

KB1A Multifunction Flanging Machine


Main application and performance:

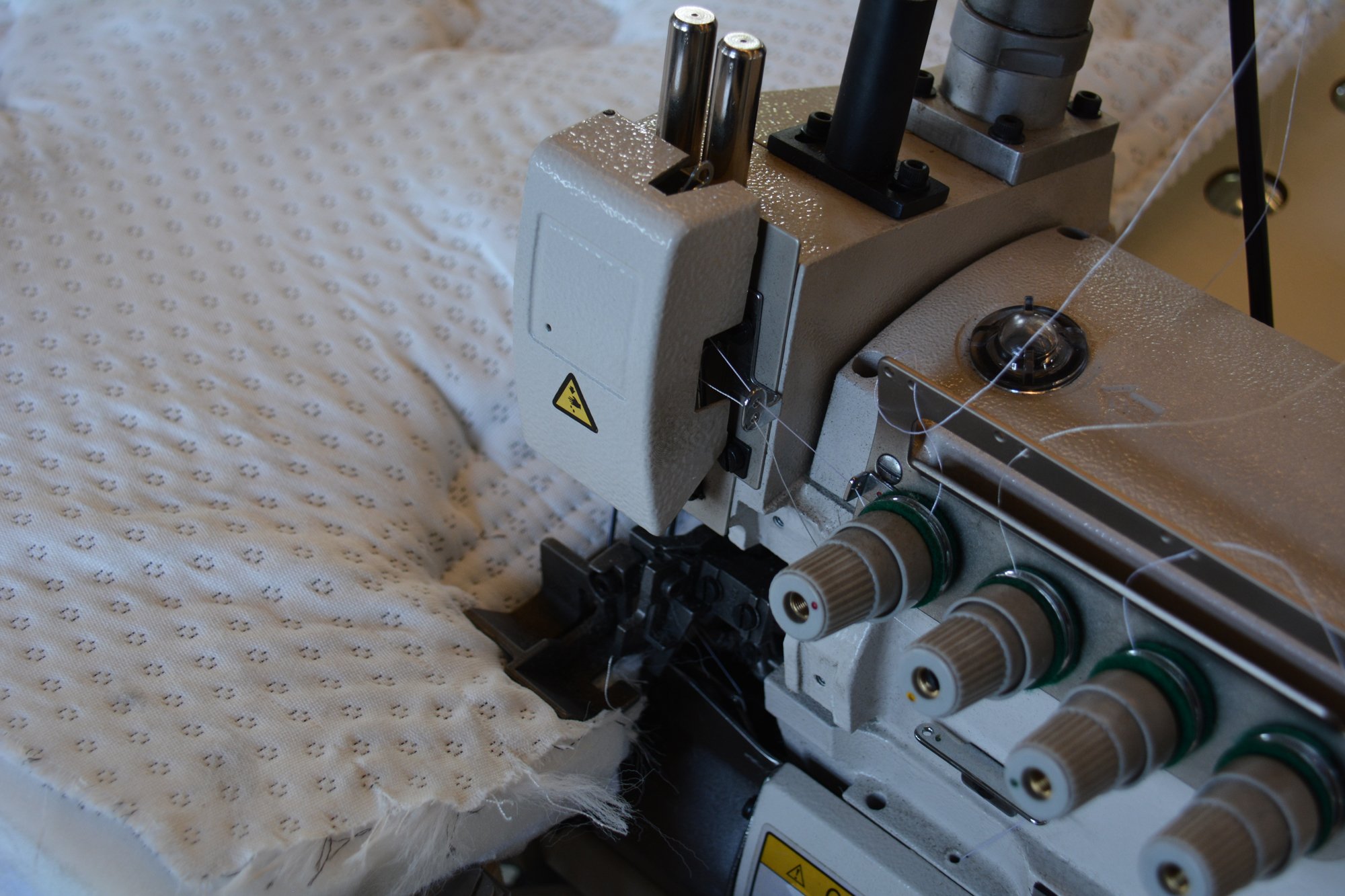

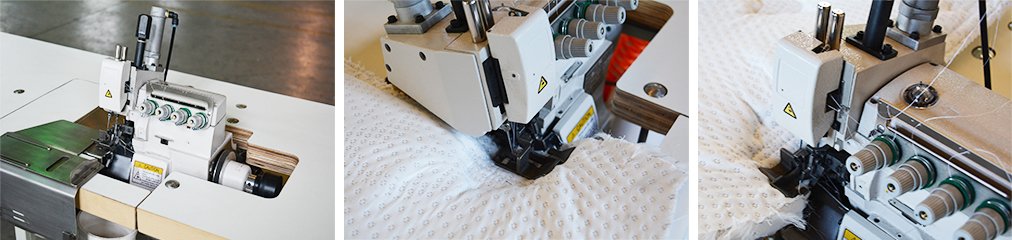

With Model KB1A Mulitfunction flanging machine, mattress quilt and hand-pulling fabric may be over locked and sew up together simultaneously. It has the feature of double air cylinder, five threads, adjustable presser foot pressure, and stepless speed regulation. It is suitable for sewing a variety of texture fabric.

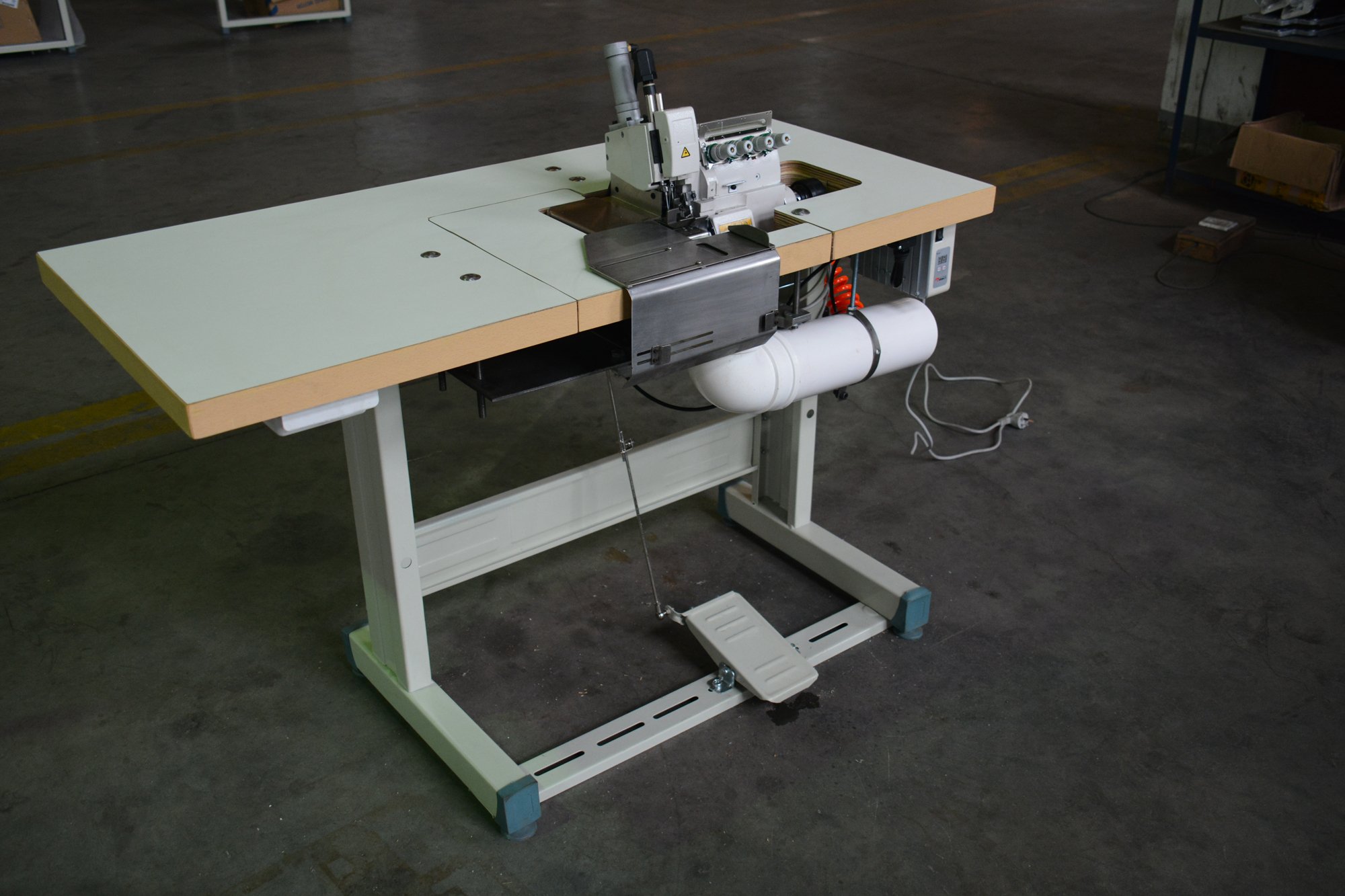

kB1A mattress flanging machine.jpg
Product Specification:

ModelKB1A
Max sewing thickness50mm
Sewing width20mm, (25)mm
Presser foot lift height12mm
Stitch1-5mm (adjustable)
Max sewing speed4000 (s.p.m)
Rated Pressure0.5-0.8 Mpa
Sewing head typechina made
Upper feed belt availableNo
Needle bar typedouble-bar
Motor power560W


Certificate:

KB1 multifunction flanging machine certificate



CNC Machining Center:

multifunction flanging machine cnc machining center

Conventional Machine Center:
multifunction flanging machine conventional machine center



 Parts Warehouse:

multifunction flanging machine parts-warehouse




Shipping
:


loading-and-packing

Exhibition:

mattress machine exhibition


Mattress Brand we served:

QQ图片20151201081856QQ图片20151201082047QQ图片20151201081748QQ图片20151201081908QQ图片20151201081956QQ图片20151201081928QQ图片20151201081640
QQ图片20151201081811QQ图片20151201081542QQ图片20151201081800QQ图片20151201081724QQ图片20151201082009QQ图片20151201081841QQ图片20151201081657
QQ图片20151201081710QQ图片20151201081825QQ图片20151201082021QQ图片20151201082505QQ图片20151201082322QQ图片20151201082515QQ图片20151201082538
QQ图片20151201082310QQ图片20151201082432QQ图片20151201082644QQ图片20151201082110QQ图片20151201082421QQ图片20151201082137QQ图片20151201082344
QQ图片20151201082137QQ图片20151201082744QQ图片20151201082443QQ图片20151201082632QQ图片20151201082558QQ图片20151201082213QQ图片20151201082813



Machine Layout :

KB1 multifunction flanging machine layout size


The machine will be packed in one plywood wooden cases.

Package 1: 1360x730x1270 mm

Total G.W.: 200 kgs
